1M 15mm Taper Potentiometer Kit Rotary B1K 2K 5K 10K 20K 50K 100K 500K

1M 15mm Taper Potentiometer Kit Rotary B1K 2K 5K 10K 20K 50K 100K 500K

1M 15mm Taper Potentiometer Kit Rotary B1K 2K 5K 10K 20K 50K 100K 500K
1M 15mm Taper Potentiometer Kit Rotary B1K 2K 5K 10K 20K 50K 100K 500K
1M 15mm Taper Potentiometer Kit Rotary B1K 2K 5K 10K 20K 50K 100K 500K
Product Details:
Place of Origin: China
Brand Name: OEM / ODM
Model Number: OKY0107-A
Payment & Shipping Terms:
Minimum Order Quantity: 25 Pieces
Price: USD 1.23- USD 1.31/ Pieces
Delivery Time: 6-8 Work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per day
Contact Now
Detailed Product Description

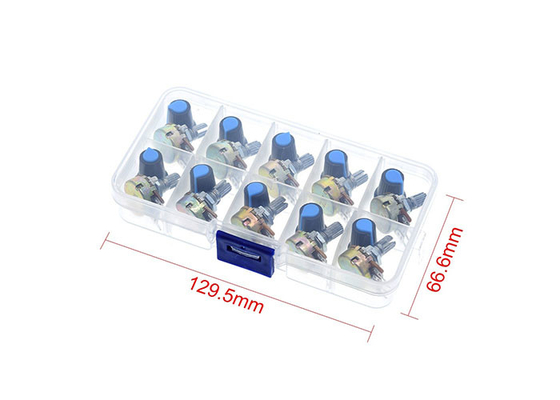

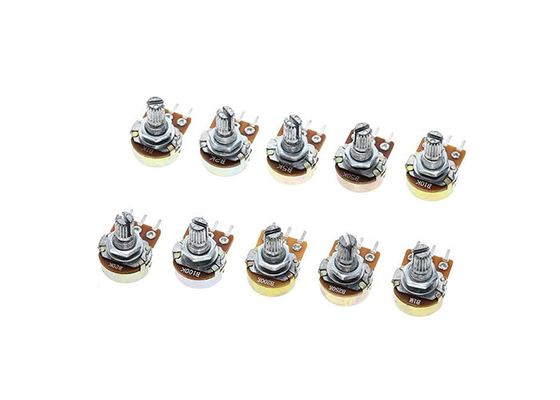

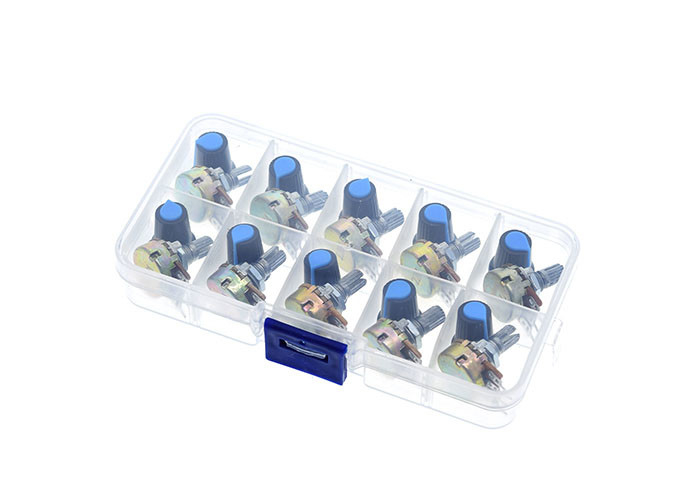

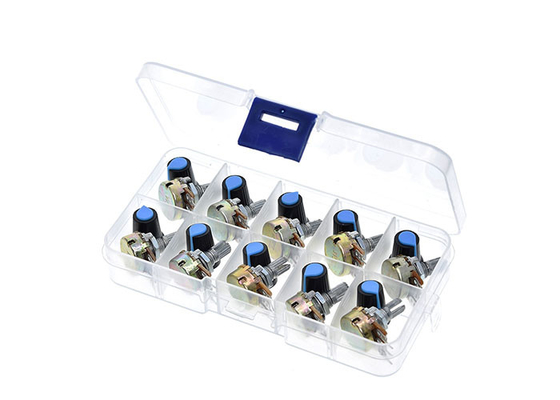

Product Name: WH148 Potentiometer Kit Rotary Potentiometer Resistor Set Keywords: Potentiometer Kit
MOQ: 25pcs DIY: Yes
Condition: 100% Origin Application: For Stem Education
Weight: 125g Temp Range: -10℃~100℃
High Light:

Potentiometer Kit Electronic Components

,

15mm Taper Potentiometer Kit

,

Rotary Potentiometer Resistor

B1K 2K 5K 10K 20K 50K 100K 500K 1M 15mm Taper WH148 Potentiometer Kit Rotary Potentiometer Resistor Set





Description:

Electrical Characteristics

1. Temp Range:-10℃~100℃

2. Rated Power:Curve B:0.125W;Other curve B:0.053W

3. Max Operation Voltage:Curve B:200V;Other curve B:150V

4. Resistance Range:1KΩ~2MΩ

5. Allow Desistance Tolerance:±20%(1MΩ or more30%)

6. Rotational Noise:≤47mV

7. Resistance Law:A,B,C

8. Dielectric:AC500V,1 minute

9. Insulation Resistance:More than 100MΩ at DC500V





Specification:

  Mechanical Characteristics:
Rotational Torque 2~20 mN.m(20~200gf.cm)
Total Rotational Angle 300°±5°
Rotary life 10000 cycles
Shaft Stopper Strength 6Kgf.cm
Push Pull Strength 60N
Click position Center detent or 10,20,40
Weight 125g





FAQ



1. What is the terms of payment?


L/C,D/A,D/P,T/T,Western Union,MoneyGram

2. What is the delivery time?



Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3. If the products can't work after receiving it,what should I do?



We will replace new items for you at once, and respect your final decision for wrong goods.

4. If the products don't meet my demand after I received it,can I return it?



Yes,no problem.You can return back to us, we will refund your full payment.

5. what is the warranty?



1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
