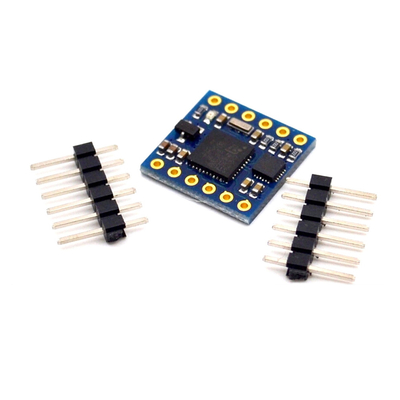

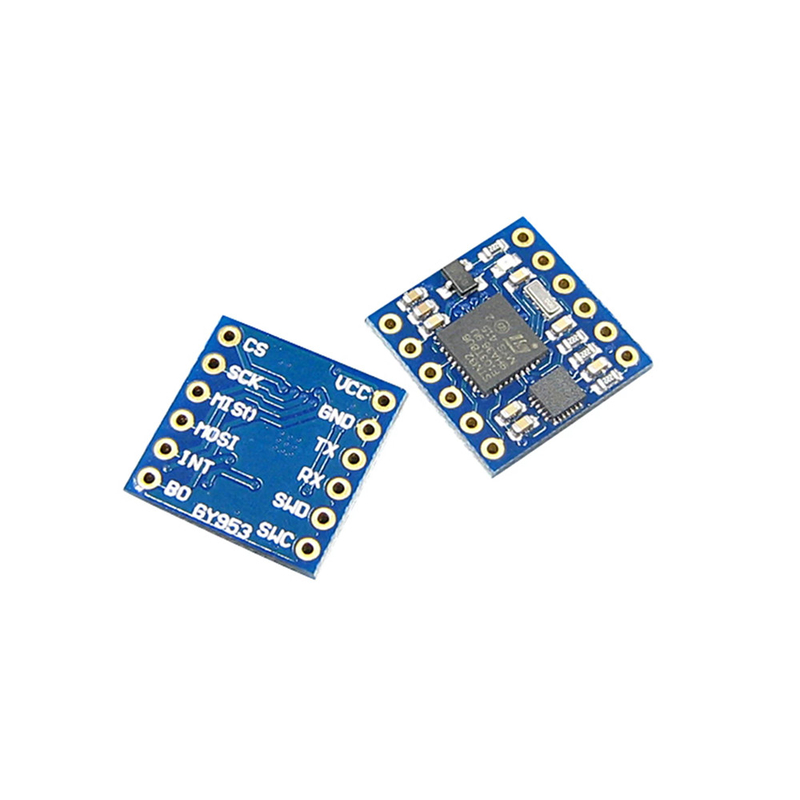

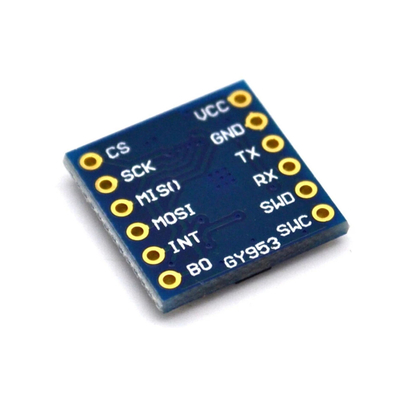

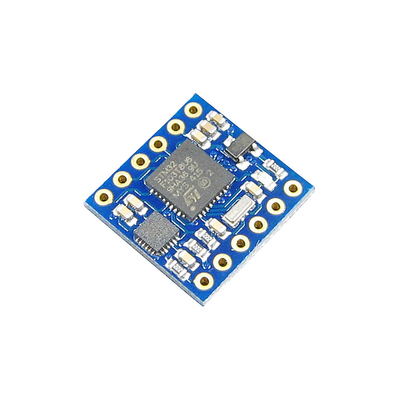

GY-953 IMU 9 Axis Attitude Sensor Tilt Compensation Electronic Module For Arduino

GY-953 IMU 9 Axis Attitude Sensor Tilt Compensation Electronic Module For Arduino

GY-953 IMU 9 Axis Attitude Sensor Tilt Compensation Electronic Module For Arduino
GY-953 IMU 9 Axis Attitude Sensor Tilt Compensation Electronic Module For Arduino
GY-953 IMU 9 Axis Attitude Sensor Tilt Compensation Electronic Module For Arduino
Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Model Number: OKY3255
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: USD9.32-10.36/piece
Packaging Details: Different anti-static package at optional: 1. Full or partial package according as your requirement. 2. Retailing Box package design according to your requirement ( Order > 2000PCS )
Delivery Time: 5-8 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Brand: OEM/ODM Product Name: GY-953 IMU 9-axis Attitude Sensor
Size: 5.5 Mm * 15.5 Mm Color: Blue
Weight: 5g Material: PCB
Application: For DIY Project Origin: CN
High Light:

Tilt Compensated Electronic Module

,

9 Axis Electronic Module For Arduino

,

IMU Module For Arduino

GY-953 IMU 9-axis attitude sensor tilt compensation electronic Module for Arduino





Description:



GY953 AHRS module electronic compass with tilt compensation module
Communication, 1 serial port (9600,115200), 2.SPI communication (4-wire)
Power supply: 3v-5v 15ma
Output update frequency 100HZ,
Resolution 0.1 degree
Direct output:
1. Euler angles (YAW ROLL PITCH)
2. 9-axis sensor raw data (accelerometers, gyroscopes, magnetometers)
3. The output of the four elements





Specification:



Brand OEM
Weightg 5g
Size 5.5 mm * 15.5 mm
Color Blue
Controller Chip GY-953
Power supply 3v-5v 15ma
Customization Yes
Application For DIY project
Material Mixture





FAQ



1. What is the terms of payment?


L/C,D/A,D/P,T/T,Western Union,MoneyGram

2. What is the delivery time?



Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3. If the products can't work after receiving it,what should I do?



We will replace new items for you at once, and respect your final decision for wrong goods.

4. If the products don't meet my demand after I received it,can I return it?



Yes,no problem.You can return back to us, we will refund your full payment.

5. what is the warranty?



1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
