Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module For Arduino

Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module For Arduino

Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module For Arduino
Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module For Arduino
Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module For Arduino
Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Model Number: oky3494-1
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: USD0.89-1.09/piece
Packaging Details: Different anti-static package at optional: 1. Full or partial package according as your requirement. 2. Retailing Box package design according to your requirement ( Order > 2000PCS )
Delivery Time: 5-8 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Product Name: Mini Rfid Module RC522 Sleep Current: <80uA
Peak Current: 30mA Working Frequency: 13.56MHz
Size: 37.5mm*33mm Weight: 30g
MOQ: 10PCS Color: Black
Application: For Stem Education
High Light:

Rc522 Rfid Sensor Module

,

Mini Rfid Sensor Module

,

Ic Card Rf Sensor Module

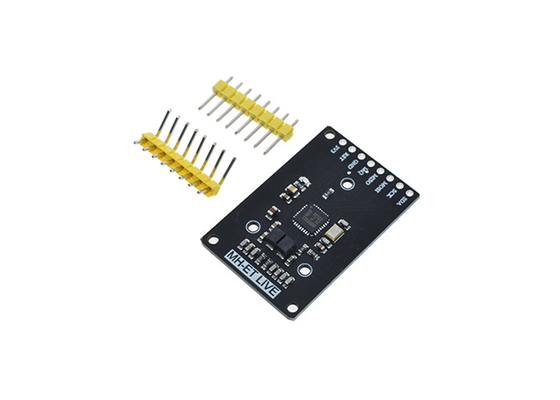

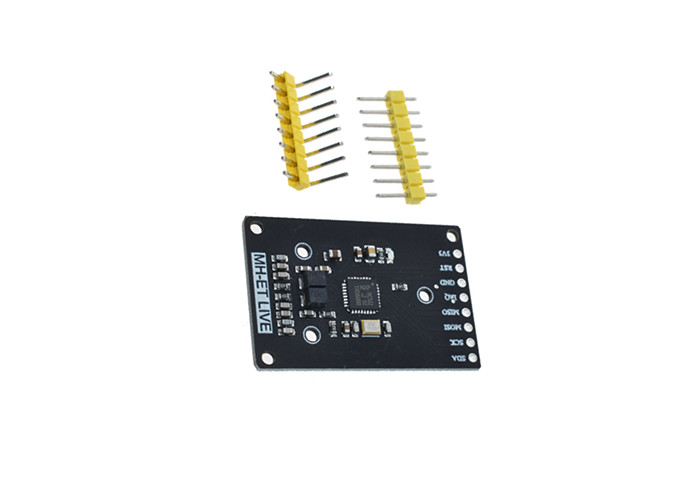

Mini Rc522 Rfid Sensor Module I2C Iic Interface Ic Card Rf Sensor Module for Arduino



Description:

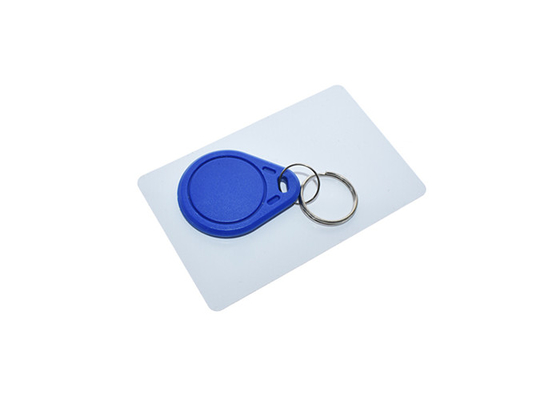

1.Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire;

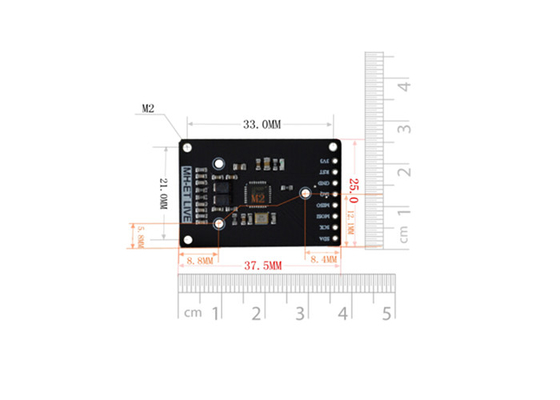

Product physical characteristics: size: 37.5mm×33mm;

Environmental working temperature: -20-80 degrees Celsius;

Environmental storage temperature: -40-85 degrees Celsius;

Environmental relative humidity: relative humidity 5%-95%.





Specification:



Size 37.5mm×33mm
Working current 13—26mA/DC 3.3V
Idle current 10-13mA/DC 3.3V
Sleep current <80uA
Peak current <30mA
Working frequency 13.56MHz
Color Black
Application For stem education
Material Mixture





FAQ



1. What is the terms of payment?


L/C,D/A,D/P,T/T,Western Union,MoneyGram

2. What is the delivery time?



Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3. If the products can't work after receiving it,what should I do?



We will replace new items for you at once, and respect your final decision for wrong goods.

4. If the products don't meet my demand after I received it,can I return it?



Yes,no problem.You can return back to us, we will refund your full payment.

5. what is the warranty?



1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
