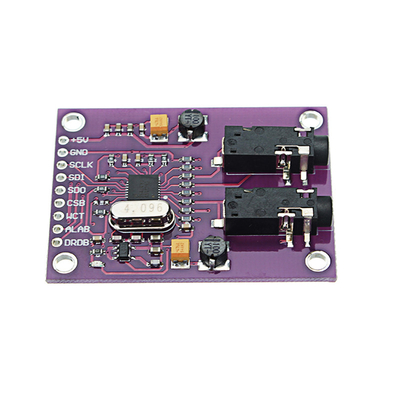

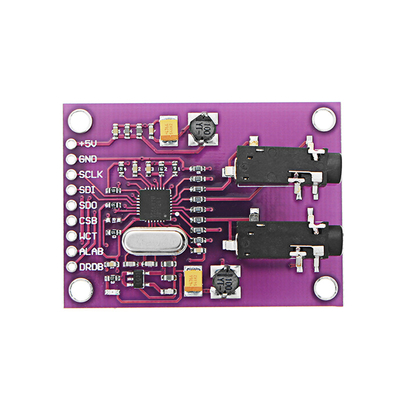

24 Bit Analog Front End Digital ECG Module ADS1293

24 Bit Analog Front End Digital ECG Module ADS1293

24 Bit Analog Front End Digital ECG Module ADS1293
24 Bit Analog Front End Digital ECG Module ADS1293
24 Bit Analog Front End Digital ECG Module ADS1293
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: OEM
Model Number: OKN424-28
Payment & Shipping Terms:
Minimum Order Quantity: 10Piece/Pieces
Price: USD22.15-20.31/PC
Packaging Details: Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
Delivery Time: 1-2 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Model Number:: ADS1293 Digital Electrocardiogram Module Supply Voltage:: 2.7 5.5V
Operating Temperature:: -20~+85 Package Weight:: 0.02kg
Package Size:: 10 * 10 * 2CM Low Power Consumption:: 0.3MW
Input Bias Current:: 175pA Differential Input Voltage Range:: ± 400MV
High Light:

ECG Module ADS1293

,

24 Bit ECG Module

,

ECG Analog Front End

Bit Analog Front End Channel 24 Digital Electrocardiogram Module ADS1293 Shield for Arduino






Description:



1. The ADS1293 includes all of the features typically required in portable, low power medical, sports, and fitness ECG applications.3 high resolution digital electrocardiogram (ECG) channels with synchronized pacing output.

2. Each channel can be set for a specific sample rate and bandwidth, allowing users to optimize their configuration for performance and power consumption.

3. All input pins contain an electromagnetic interference (EMI) filter and the input channel can be selected via a flexible routing switch. AC and DC lead disconnection detection, right leg drive and Wilson reference terminal generation without the need to reconnect leads from the outside, ALARMB pin for interrupt driven diagnostics, battery voltage monitoring, built一in oscillator and reference, flexible Power off and standby mode.



Specification:



1. Model Number:ADS1293 Digital Electrocardiogram Module
2. Supply Voltage:2.7 5.5V
3. Condition:New
4. Type:Voltage Regulator

5. Operating Temperature:-20~+85

6. Package Weight:0.02kg
7. Package Size:10 * 10 * 2CM

8. Low Power Consumption: 0.3MW

9. Input Incoming Noise: 7uVpp

10. Input Bias Current: 175pA

11. Differential Input Voltage Range: ± 400MV



Package Including:

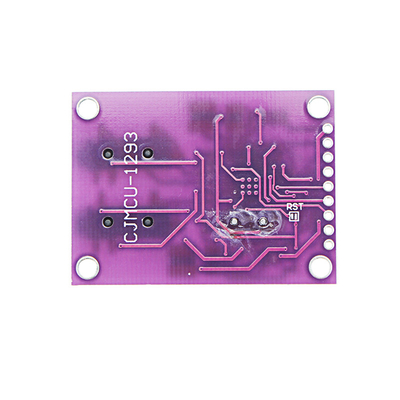

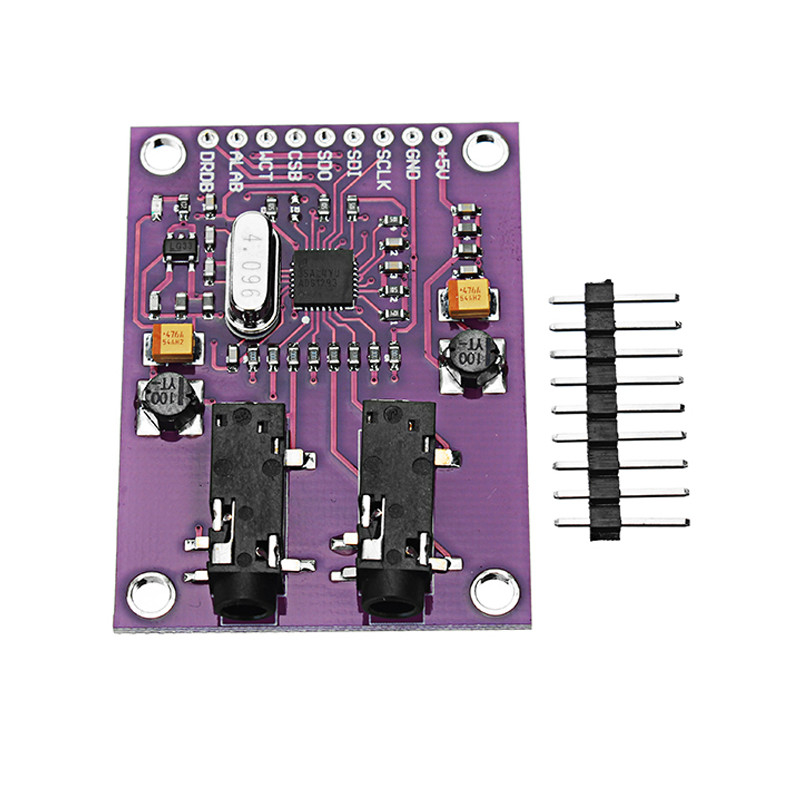

1* CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement
