Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
Place of Origin: | Guangdong China (Mainland) |
Brand Name: | Oky Newstar |
Certification: | RoHS |
Model Number: | OKY2151 |
Minimum Order Quantity: | 1 Piece/Pieces |
---|---|
Price: | USD0.9-1.51/piece |
Packaging Details: | Different package at optional: 1. Retailing Package:Anti-static bag |
Delivery Time: | 3-5 workdays after payment |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 1000 Piece/Pieces per Day |
Height: | 1.2 | Board Weight: | 38g |
---|---|---|---|
Width: | 2.7 | Length: | 3.4 |
Color: | As Picture | Delivery Time: | 1-3 Days |
Warranty: | 2 Years | Factory: | Yes |
Highlight: | arduino wifi shield,arduino bluetooth shield,Motor Drive Shield Expansion Board |

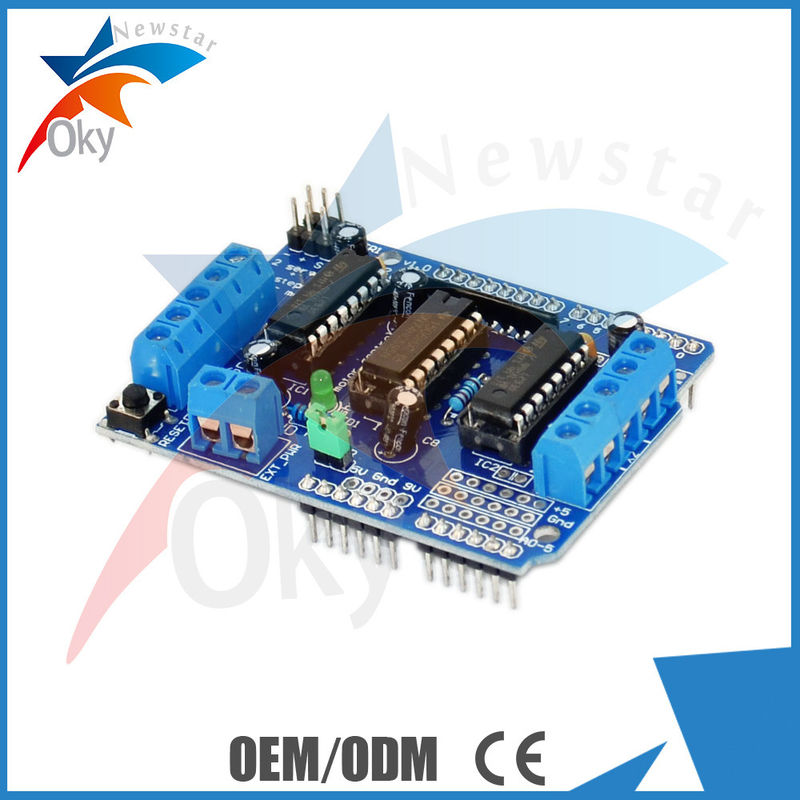

L293D Motor Control Shield , Motor Drive Expansion Board
Description:
L293D is a monolithic integrated, high voltage, high current, 4-channel driver.Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what's known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
- 2 interface for 5V Servo connected to For Arduino's high-resolution dedicated timer - no jitter!
- Can drive 4 DC motors or 2 stepper motors or 2 Servo
- Up to 4 bi-directional DC motors with individual 8-bit speed selection
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
- Pull down resistors keep motors disabled during power-up
- reset button
- 2 external terminal power interface, for seperate logic/motor supplies
- Tested compatible for Arduino Mega, Diecimila & Duemilanove
Chip | L293D |
Model number | OKY2151 |
external power | 0V - 25V |
Pin No. | 16 pins |
Motors | 5V to 36V DC |
Tested compatible | Duemilanove, Mega & Uno |
Length | 3.4 |
Width | 2.7 |
Height | 1.2 |
Board Weight | 38g |
Specifications:
· Here is a design for a full-featured motor shield that will be able to power many simple to medium-complexity projects.
· L293D is a monolithic integrated, high voltage, high current, 4-channel driver.
· Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge.
· The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Competitive Advantage:
1.Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around The Globe.
4. High Quality With Global Standards.
5. 3 year factory warranty
6. Safe shipping way and payment
Photos:
