Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | OEM |
| Certification: | CE, FCC, RoHS |
| Model Number: | OKY3384-1 |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Price: | USD2.26-2.57/piece |
| Packaging Details: | Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS) |
| Delivery Time: | 1-3 workdays after payment |
| Payment Terms: | PayPal, L/C,D/A,D/P,T/T Bank Transfer, Western Union,MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Day |
| Color: | Black | Voltage Regulator: | 3.2 V -- 5.5 V |
|---|---|---|---|
| Module Size: | 26.7 X 12.9 X 0.6mm | Delivery Time: | 1-3 Workdays |
| Material: | Metal | User: | Students,Engineers Etc. |
| Warranty: | 2 Years | Factory: | Yes |
| Highlight: | arduino sensors kit,arduino temperature sensor |
||
Wireless Transceiver Module Wireless Module Serial Port 433Mhz SI4438/SI4463
Features:
At the transparent transmission mode, baud rate, and wireless communication channel must be set to the same. The factory default settings are FU3, 9600bps (8-bit data, no parity, 1 stop bit), and CH100 (443MHz). This mode can automatically adjust the air baud rate according to the serial port baud rate, and the communication distance is the farthest at low baud rate.When using, it is generally not limited to the number of bytes sent continuously to the serial port of the module. However, in view of environmental interference and other factors, when a large amount of data is continuously transmitted at a time, some bytes may be lost. Therefore, the host computer should have mechanisms such as answering and resending to avoid information loss.
Specifications:
| Module size | 26.7 x 12.9 x 0.6mm |
| Chip solution | SI4438 |
| Working frequency | 433-458.5MHz |
| Communication Interface | UART 3.3V/5V |
| TTL Antenna interface | Spring antenna / antenna socket |
| Operating Voltage | 3.2-5.5V |
| Sleep current | No sleep mode |
| Communication level | 3.3V/5V |
| Working humidity | 10-90 percent |
| Transmit power | 20dBm(MAX) |
| Operating temperature | -25 Celsius +75 Celsius |
| Reference distance | 1200m |
| Storage Temperature | -40 Celsius +85 Celsius |
| Colour | Black |
| Material |
metal |
Circuit Diagram

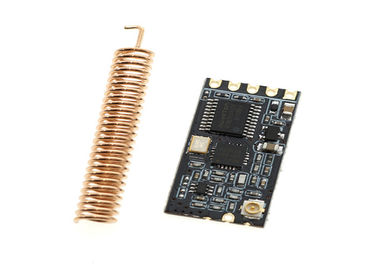

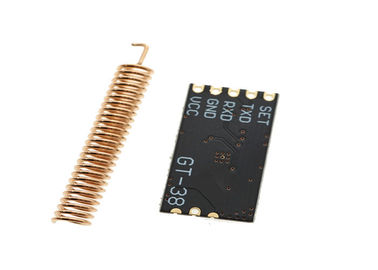

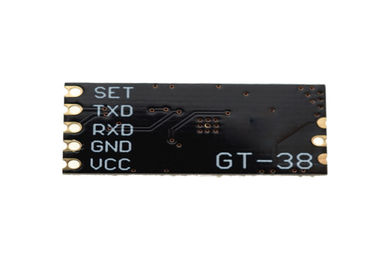

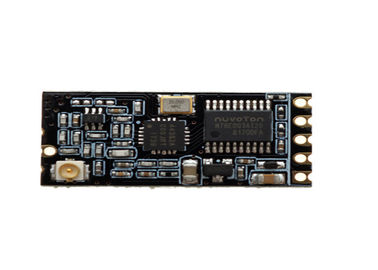

Product Photo
Dimension Photo
