Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China(Mainland) |
| Brand Name: | OEM |
| Model Number: | OKY3430-0 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD$2.02-$2.29 per piece |
| Packaging Details: | Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS) |
| Delivery Time: | 1-3 work days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A, D/P, T/T |
| Supply Ability: | 10000 pieces per day |
| Product Name: | 1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201 | Working Voltage Range: | DC 5~18 V |
|---|---|---|---|
| Size: | 39mm*17mm | Weight: | 10g |
| Factory: | Yes | Company History: | 13 Years |
| Available: | DIY Project,student,engineer,programmer | ||
| High Light: | arduino sensors kit,arduino temperature sensor |
||

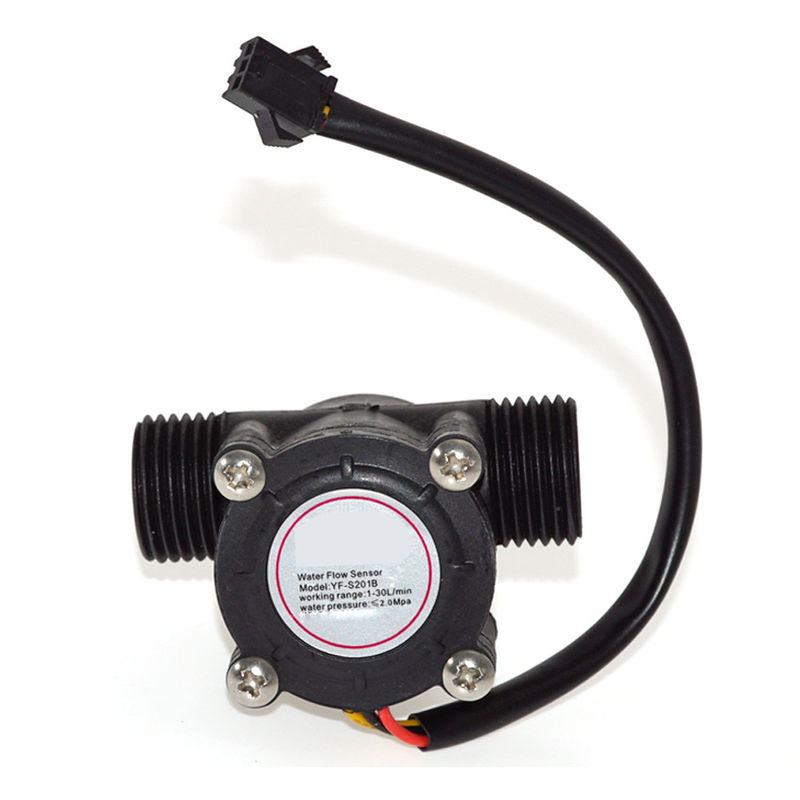

1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201
Flowmeter with G1/2 Threads - simple output to measure the flow rate of water or other non-flammable liquids
Great for use with Arduinos or other microcontrollers - may also be used for gases with some adjustment for density
1/2" Pipe Threads, Hall Effect Sensor interface, 1-30L/min 1.2MPa Capacity
1. The lowest rated working voltage: DC4.5 5V-24V
2. Maximum operating current: 15 mA (DC 5V)
3. Working voltage range: DC 5~18 v
4. Load capacity: ≤ 10 mA (DC 5V)
5. Use temperature: ≤ 80 ℃
6. Operating humidity range: 35%~90%RH (no frost)
7. Aallowing pressure: pressure 1.2Mpa
8. Temperature: -25~+80 ° c
9. External threads: 1/2"
10. High amplitude ≥ 4.6V
11. Low amplitude ≤ 0.5V
12. Electric strength 1250V/min
13. Insulation resistance ≥ 100MΩ
14. Hydrostatic pressure testing ≤ 2.0Mpa
15. External Threads: 1/2"
Package Included:
1pcs 1/2" Hall Effect Flowmeter Control Water Flow Sensor Water YF-S201
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
