Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | CN |
| Brand Name: | Okynewstar |
| Certification: | OEM |
| Model Number: | OKY3053 |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | 0.26usd/pc-0.29usd/pc |
| Packaging Details: | Different anti-static package at optional: 1. Full or partial package according as your requirement. 2. Retailing Box package design according to your requirement ( Order > 2000PCS ) |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 50000pcs/day |
| Operating Voltage: | 3.3V-5V | Static Current: | Less Than 2mA |
|---|---|---|---|
| Sensor Angle: | Less Than 15 Degrees | Detection Distance: | 2cm-450cm |
| Board Size: | 32mm*14mm*8mm | Weight: | 5g |
| High Light: | shields for arduino,arduino sensors kit |
||

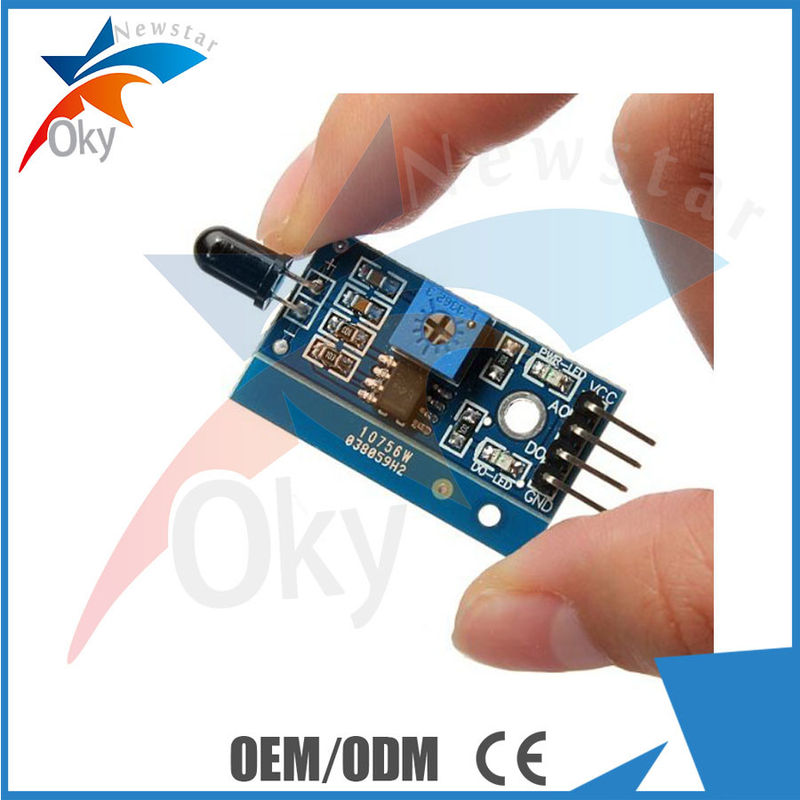

IR Infrared Flame Detection Sensor Module board for Arduino
Specifications:
| Operating Voltage | 3.3V-5V |
| Static current | Less than 2mA |
| Sensor angle | Less than 15 degrees |
| Detection distance | 2cm-450cm |
| Board Size | 32mm*14mm*8mm |
| Weight | 5g |
| GND: | GND |
| DO: | Board digital output interface (0 and 1) |
| AO: | Board analog output interface |
| Kindly notes: |
Please keep a distance with flame, high temperature maybe burn out the sensor module. |
Feature:
Detects a flame or a light source of a wavelength in the range of 760nm-1100 nm
Detection angle about 60 degrees- it is sensitive to the flame spectrum.
Development:
2005, Established in Shenzhen, Guangdong, China, engaged in providing all kinds of diode, audino, integrated circuits, and electronic components.
2006-2008, Invested in Single Chip Microcomputer plant, specialized in manufacturing all kinds of sensor modules and power supply modules.
2009-2010, Started to manufacture Ardu-related modules, sensor modules, single development boards, etc.
2011-2012, Mainly provided various kinds of Ardu-related boards and shields, such as UNO R3, Mega, DUE, W5100 etc. At the same time, invested in the factory of 3D printer spare parts.
2013-2014, Took Ardu supplies as leading business,Cooperating with DIY factory, providing Ardu-related Robot products such as servo, control board cables and so on.
2015, Striving to develop overseas business, lower, accepting small batch orders. Investing in 3D printer factory and expanding product offerings.
