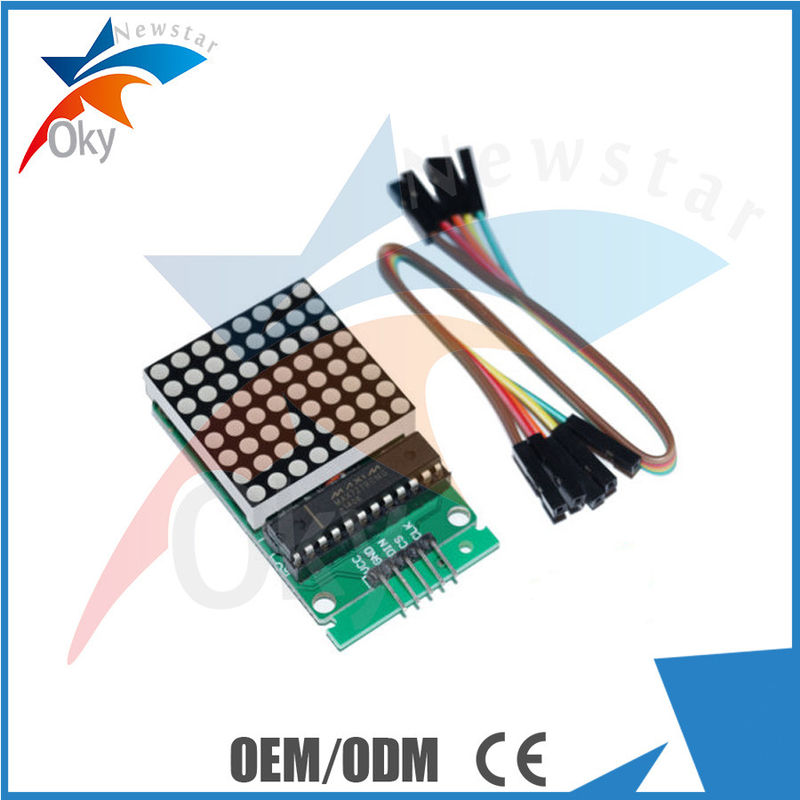

Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219

Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219

  • Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219
  • Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219
  • Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219
  • Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219
Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: Oky Newstar
Model Number: oky3523
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: USD 1.20-1.51 per piece
Packaging Details: Different anti-static package at optional: 1. Full or partial package according as your requirement. 2. Retailing Box package design according to your requirement ( Order > 2000PCS )
Delivery Time: 3-5 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Dot Led Matrix Module: MAX7219 Module Operating Voltage: 5V
Module Size (L X W X H):: 5 X 3.2 X 1.5cm
High Light:

shields for arduino

,

arduino sensors kit

Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219



Description:

Model:MAX7219
Can drive an 8 x 8 common cathode lattice
Module with input and output interfaces supports multiple modules cascade
The left of the module has an input port and the right an output port
The control of a single module‚ simply input port to the CPU
Multiple modules cascade input termination CPU‚ 2 output termination module‚ a module of the input of the input terminal‚ the output terminal of the first two modules of the first three modules etc.



Features:
Operating voltage: 5V
With four screws hole(diameter: 3 mm)
For example 51 MCU:
VCC - 5V
GND - GND
DIN - P22
CS - P21
CLK - P20



Package Includ:
1 x MAX7219 LED module KIT

Content:
(1X PCB board
1X 24P IC socket
1X DIP MAX7219 chip
1X 10uF electrolytic capacitor
1X 0.1uF a ceramic capacitor
1X 10K resistor
1X 3mm 8 x 8 common cathode a red dot)


Photos:

Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219 0Display Module 2016 LED Matrix Module Dot Matrix Display led MAX7219 1





Competitive Advantage:

1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment
