Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller

Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller

  • Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
  • Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
  • Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
  • Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
  • Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller
Product Details:
Place of Origin: Guangdong China(Mainland)
Brand Name: OEM
Certification: CE
Model Number: OKY2320
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD $ 36.06- $39.20
Packaging Details: standard package
Delivery Time: 1-3 work days after payment
Payment Terms: D/P, D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per day
Contact Now
Detailed Product Description
Factory Price: Yes Application: 3d Printing
Weight: 100g Size: 210*50mm
Stability: Reliable Clock Speed: 16Mhz
Operating Voltage: 12-24V
High Light:

arduino development kit

,

arduino development board

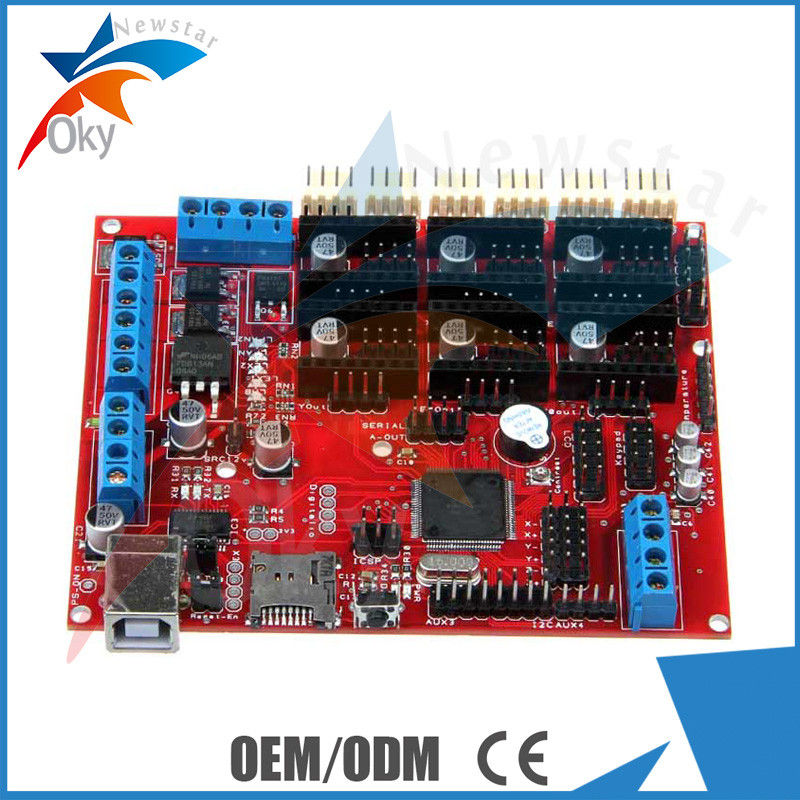

Atmega2560-16AU RepRap Stepper motor controller Megatronics V2.0





Description
porduct name Stepper motor
Main Features

Megatronics is based on many famous open-source products

including: Ardu Mega 2560, RAMPS, SD Ramps. Therefor this

product is an already proven design. It combines all major f

eatures of these board into a single board solution for more

reliable 3D-printing. Megatronics has a powerful Atmega2560

processor with 256 kB memory, running at 16Mhz. The board can

be connected to a PC using a normal USB cable. It will

register as FTDI FT232R device. The board is compatible

with the Ardu Mega 2560 and will therefor be easily programmed

from the Ardu IDE.

specifications

Microcontroller: Atmega2560-16AU Operating voltage electronics: 5V Operating voltage high: 12-24V (15A heated bed, 7A electronics) DC current per I/O Pin: 40mA Dimensions: 15 x 10 x 4cm Package weight: 0.125kg 1. Improved thermo couple support. 2. Second thermo couple supported 3. Support for 6 stepper drivers 4. SMD fuses and MOSFETs 5. Extra MOSFET, making 4 regular MOSFETs and one for heated bed. 6. Support for the new DRV8825 Pololu stepper drivers 7. The board can be powered from 12V1 (12V MAX), by

setting a jumper 8. The LCD contrast can be adjusted with a trimpot 9. 12V1 has a diode to protect against reverse polarization 10. The 5V line is protected by a 500mA resettable fuse 11. A piezo is included to allow the printer to give feedback

with sound 12. Each stepper driver slot has a breakout to connect external

stepper drivers to the board. 13. Four layer high quality PCB board

Product weight 5g
size 62mmx20mmx8mm
Package Contents 1 xSteppermotors megatronics
package Anti-static bag





Photos:



Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller 0

Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller 1

Board For Arduino Atmega2560 - 16AU RepRap Stepper Motor Controller 2
