Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | OEM |
| Model Number: | OKY2009-1 |
| Minimum Order Quantity: | 10Pieces |
|---|---|
| Price: | USD$4-4.26/piece |
| Packaging Details: | 1x Pro Mini Atmega328 (not soldered) 2x straight pin headers 1x curved pin header |
| Delivery Time: | 1-3 workdays after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Day |
| Controller: | Atmel Atmega328P-AU | Input Voltage: | 3.8-12 V |
|---|---|---|---|
| Digital Input / Output Port: | 20 (RX, TX, D2 ~ D13, A0 ~ A5 ) | DC Current Per I/O Pin: | 40 MA |
| Analog Input Pins: | 8 ( A0~A7 ) | EEPROM: | 512 Bytes |
| SRAM: | 1 KB | Clock Speed: | 16 MHz |
| PWM Channel: | 6 ( D3, D5, D6, D9, D10, D11 ) | Flash Memory: | 16 KB (of Which 2 KB Used By Bootloader) |
| High Light: | Arduino Pro Mini,Arduino Pro Mini 5v,Arduino Mega Pro Mini |
||

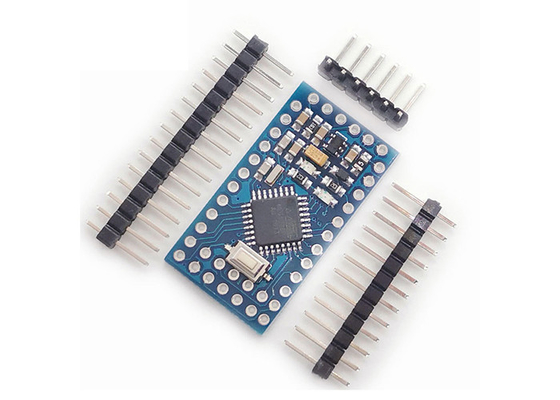

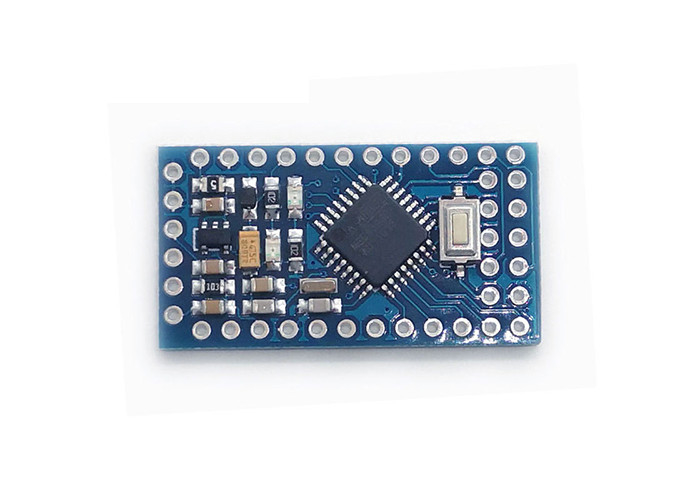

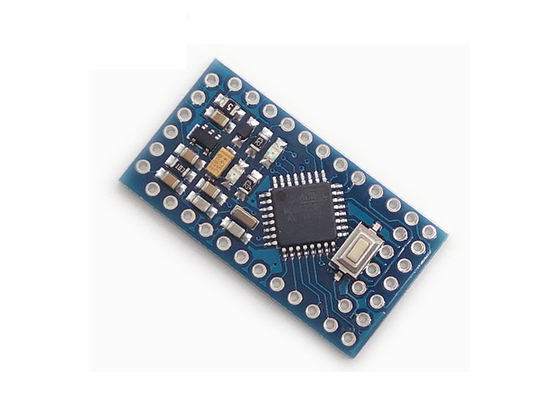

Arduino Pro Mini Atmel Atmega328P-AU 5V 16MHz Module Development Board
Description:
1. 14 puertos de entrada/salida digital RX y TX, D2 ~ D13,
2. 8 puertos de entrada analógicos A0 ~ A7
3. 1 al nivel TTL un puerto serial para enviar y recibir puerto RX/TX
4,6 PWM Puerto D3... D5... D6... D9... D10... D11
5. Utiliza microcontrolador Atmel atmega328p-au
6. Admite descarga en serie
7. Admite fuente de alimentación externa de 3,3 V ~ 12 V CC
Specification:
| Controller | Atmel Atmega328P-AU |
| Input Voltage | 3.8-12 V |
| Digital Input / Output Port | 20 (RX, TX, D2 ~ D13, A0 ~ A5 ) |
| Analog input pins | 8 ( A0~A7 ) |
| DC Current per I/O Pin | 40 mA |
| EEPROM | 512 bytes |
| SRAM | 1 KB |
| Clock Speed | 16 MHz |
| PWM channel | 6 ( D3, D5, D6, D9, D10, D11 ) |
| Flash Memory | 16 KB (of which 2 KB used by bootloader) |
FAQ
1. What is the terms of payment?
L/C,D/A,D/P,T/T,Western Union,MoneyGram
2. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
3. If the products can't work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
4. If the products don't meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.
5. what is the warranty?
1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
