SMD components bo Starter Kit For Arduino With detail manual for 24 tests

SMD components bo Starter Kit For Arduino With detail manual for 24 tests

  • SMD components bo Starter Kit For Arduino With detail manual for 24 tests
  • SMD components bo Starter Kit For Arduino With detail manual for 24 tests
  • SMD components bo Starter Kit For Arduino With detail manual for 24 tests
  • SMD components bo Starter Kit For Arduino With detail manual for 24 tests
  • SMD components bo Starter Kit For Arduino With detail manual for 24 tests
SMD components bo Starter Kit For Arduino With detail manual for 24 tests
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: Oky newstar
Model Number: OKY1024
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: 20cm x 20cm x 8cm (7.87in x 7.87in x 3.15in)
Delivery Time: 3-5 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
High Light:

starter kit for arduino

,

arduino starters kit

SMD components bo Starter Kit For Arduino With detail manual for 24 tests



Quick Detail:

1. Using the Arduino UNO Starter Kit, You can design 24 different tests

2. Detail manual for the 24 tests will provided

3. Hot sale Arduino Starter Kit

4. Good quality Arduino Starter Kit



Description:



This kit walks you through the basics of using the Arduino in a hands-on way. You'll learn through building several creative projects. The kit includes a selection of the most common . Starting the basics of electronics, to more complex projects, the kit will help you control the physical world with sensor and actuators.





Specifications:

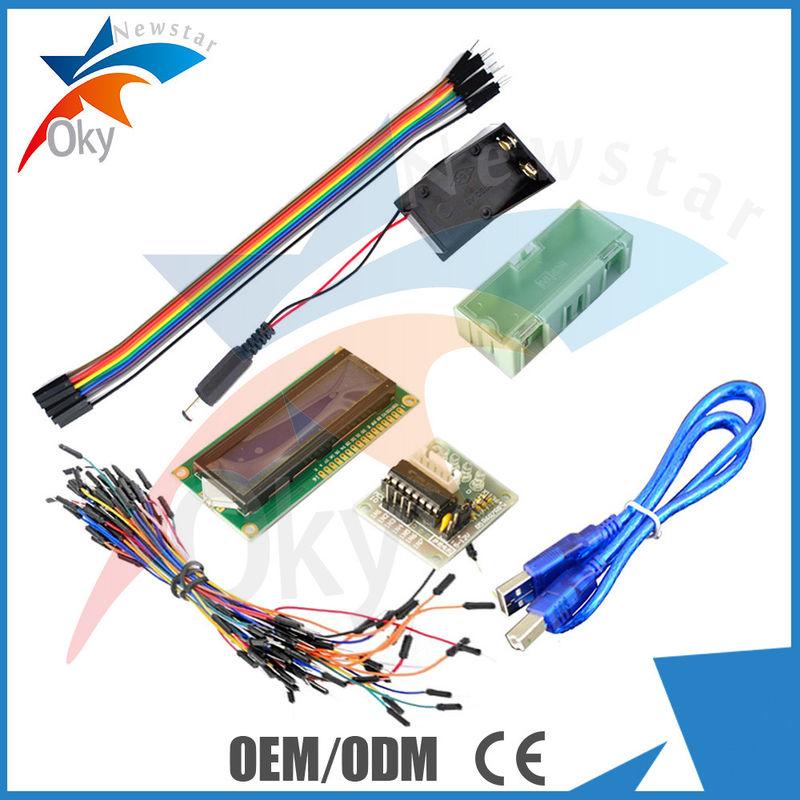

KIT LIST

Number

2012 UNO R3 Board

1

Mini Breadboard shield with mini board

1

830 points Breadboard

1

SMD components bo

1

LED red yellow green

15(each 5pcs)

Buzzer

2

Switch

4

Digital tube

2

Mercury switch or ball switch

2

Photoresistor

3

Potentiometer

1

Flame sensor

1

Infrared receiver

1

Resistance 220R, 1K, 10K

15(each 5pcs)

LM35 Temperature sensor

1

USB Cable

1

Male to male jumper wire

30

9V battery clip

1

IR mini remote control

1

1602 LCD LCD module

1

9G Servo

1

5V stepper motor + ULN2003 driver board

1

74HC595

1

8*8 DOT MATRIX

1





The Arduino Uno is a microcontroller board based on the ATmega328 . It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter.
Revision 2 of the Uno board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.




Revision 3 of the board has the following new features:



  •  1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible with both the board that uses the AVR, which operates with 5V and with the Arduino Due that operates with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
  • Stronger RESET circuit.
  • Atmega 16U2 replace the 8U2.

"Uno" means one in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.





Summary of 2012 UNO R3 Board



Microcontroller

ATmega328

Operating Voltage

5V

Input Voltage (recommended)

7-12V

Input Voltage (limits)

6-20V

Digital I/O Pins

14 (of which 6 provide PWM output)

Analog Input Pins

6

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

50 mA

Flash Memory

32 KB (ATmega328) of which 0.5 KB used by bootloader

SRAM

2 KB (ATmega328)

EEPROM

1 KB (ATmega328)

Clock Speed

16 MHz




Competitive Advantage:



1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment


SMD components bo Starter Kit For Arduino With detail manual for 24 tests 0

SMD components bo Starter Kit For Arduino With detail manual for 24 tests 1
