Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino

Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino

Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino
Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino
Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino
Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Model Number: OKY3402-0
Payment & Shipping Terms:
Minimum Order Quantity: 25 Pieces
Price: USD 0.31 - USD 0.34 / Pieces
Delivery Time: 6-8 Work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per day
Contact Now
Detailed Product Description
Product Name: TP4056 1A Lithium Battery Charging Power Module Input Voltage: 5V
Charging Voltage: 4.2V Charging Current: 1000mA
Size: 37*15MM Color: Blue
Application: For Stem Education MOQ: 25pcs
Weight: 20g
High Light:

Battery Charging Power Module for Arduino

,

1A Lithium Battery Charging Power Module

,

TP4056 Battery Charging Power Module

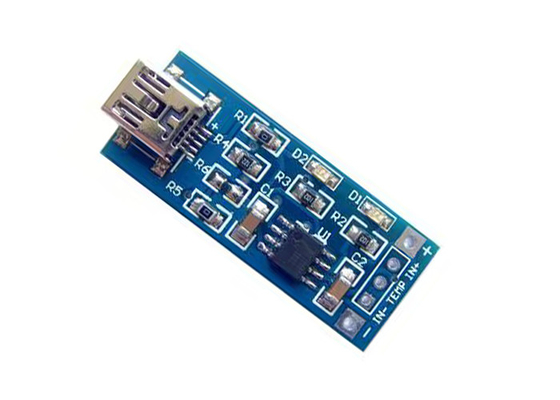

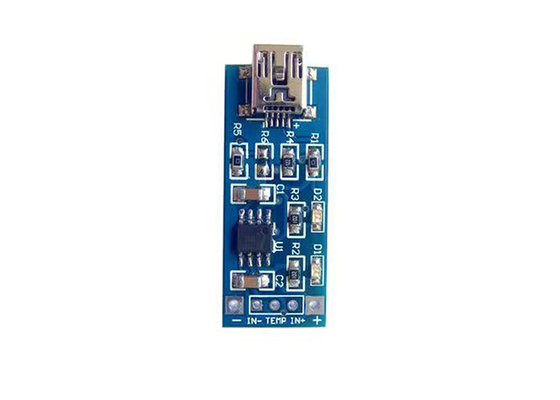

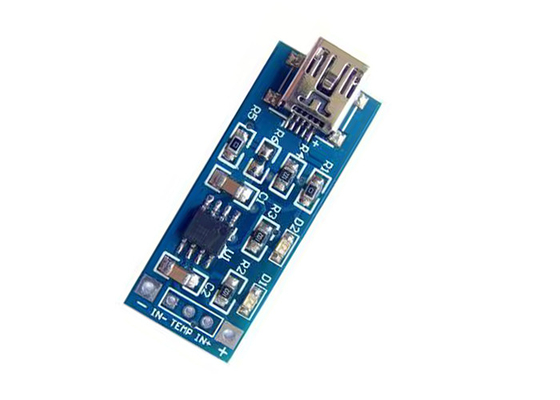

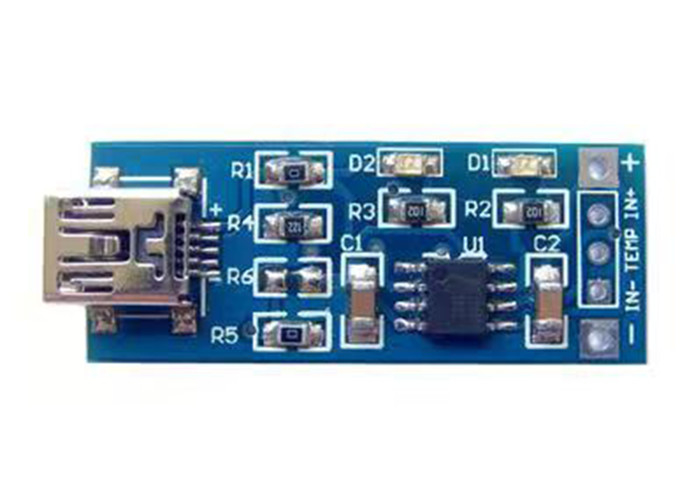

Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino





Description:

1. Onboard TP4056 lithium battery charging management chip;

2. The onboard MINI USB head can be directly connected to the computer USB port;

3. The charging board can also be powered by (IN+ and IN-) pin headers;

4. Reserve the TEM pin header, which can be used as a lithium battery temperature detection;

5. D1 indicator light is on when charging, and D2 indicator light is on when charging is complete.





Specification:

Charging current 1000mA
Input voltage 5V
Charging voltage 4.2V
Over-discharge protection voltage 2.5V
OIver-current protection current 3.2A
Application For stem education
Size 37*15MM
Color Blue
Weight 20g





FAQ



1. What is the terms of payment?


L/C,D/A,D/P,T/T,Western Union,MoneyGram

2. What is the delivery time?



Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

3. If the products can't work after receiving it,what should I do?



We will replace new items for you at once, and respect your final decision for wrong goods.

4. If the products don't meet my demand after I received it,can I return it?



Yes,no problem.You can return back to us, we will refund your full payment.

5. what is the warranty?



1-2 years warranty according to different products.
1-3 months to replace new items for free.
All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.



Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino 0Mini USB TP4056 1A Lithium Battery Charging Power Module for Arduino 1
