OKYSTAR DC 5V 12V 24V Delay Time Relay Module

OKYSTAR DC 5V 12V 24V Delay Time Relay Module

OKYSTAR DC 5V 12V 24V Delay Time Relay Module
OKYSTAR DC 5V 12V 24V Delay Time Relay Module
OKYSTAR DC 5V 12V 24V Delay Time Relay Module
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: OEM
Model Number: oky3011-12
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece/Pieces
Price: USD1.84-2.12/PC
Packaging Details: Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
Delivery Time: 1-2 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Place Of Origin: Guangdong, China Weight: 25g
Chip: Time Relay 12V Module Model: Time Relay 12V Module
Type: Relay Module Application: DIY Experiment
Warranty: 12 Months
High Light:

24V Delay Time Relay Module

,

OKYSTAR DC 12V Relay Module

OKYSTAR time relay switch 5V/12V/24V delay time relay 12V module







Description

1. Brand-new upgrade, the module function is increased to 32 kinds to meet more application needs.
2. The power supply anti-reverse connection function will not damage the module due to wrong connection of the power supply.
3. Timing accuracy to 0.01 second timing. 0.1 second (minimum) ~ 999 minutes (maximum) optional
4. Low power consumption and power saving settings, you can turn off the display area.
Product parameters:
Input voltage: 5V version: DC5V power supply; 12V version: DC12V power supply; 24V version: DC24V power supply
Output load: within DC 30V, maximum 10A. Within 250V AC, the maximum is 5A.
Trigger signal: 5V version (high level: 5V); 12V version (high level: 12V), 24V version (high level: 5V) All low levels are 0V.
Quiescent current: 20mA
Working current: 60mA
Working temperature: -25℃-85℃
Power-off memory: Yes
Product size: length 65 width 34.3 height 17.5 (MM)




Product Features



Product Weight 25g
Application delay time relay 12V module
Type relay module
Place of Origin Guangdong, China
warranty 1 year

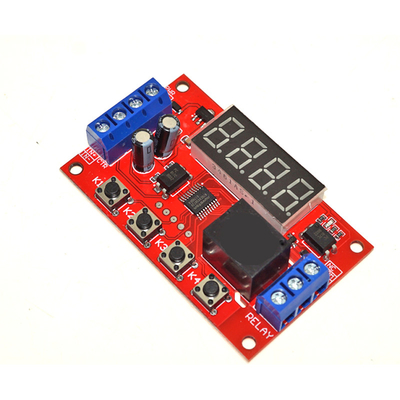

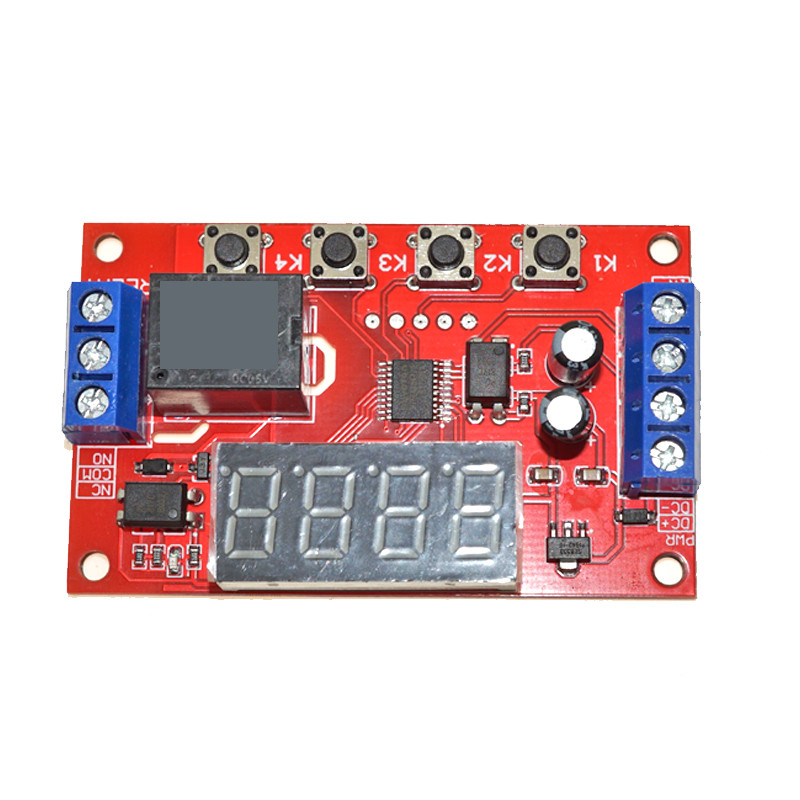

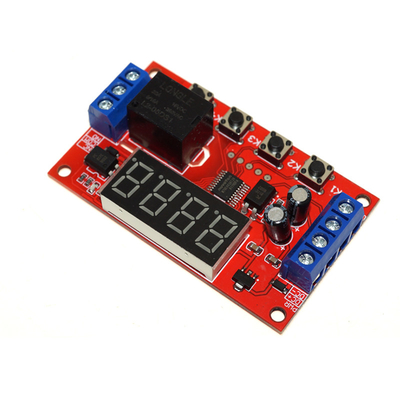

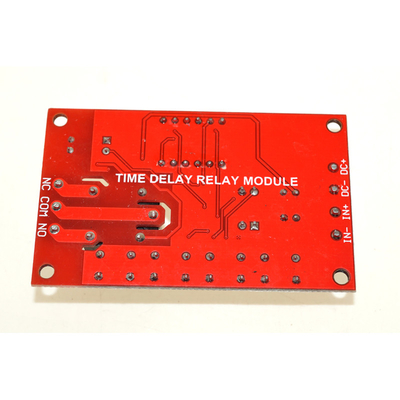

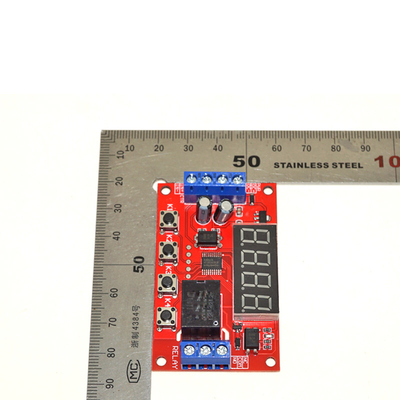

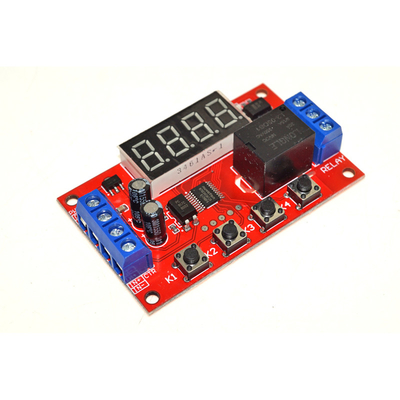

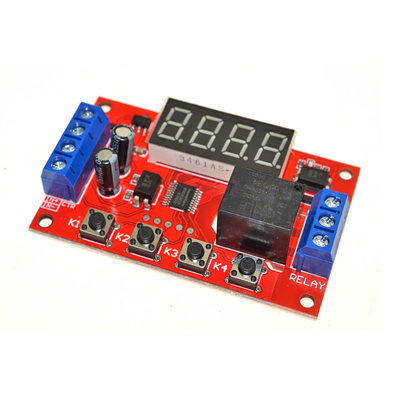

Product Picture

OKYSTAR DC 5V 12V 24V Delay Time Relay Module 0OKYSTAR DC 5V 12V 24V Delay Time Relay Module 1OKYSTAR DC 5V 12V 24V Delay Time Relay Module 2
