Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | OEM |
| Certification: | RoHS |
| Model Number: | OKY3259-2 |
| Minimum Order Quantity: | 10Piece/Pieces |
|---|---|
| Price: | USD3.72-4.23/piece |
| Packaging Details: | Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS) |
| Delivery Time: | 1-3 workdays after payment |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000Piece/Pieces per Day |
| Color: | As Picture | Voltage Range: | 1.71 V To 3.6 V |
|---|---|---|---|
| N.W: | 5g | Delivery Time: | 1-3 Days |
| Condition: | Brand New And Original | User: | Students,Engineers Etc. |
| Warranty: | 2 Years | Factory: | Yes |
| Highlight: | arduino sensors kit,arduino temperature sensor |
||

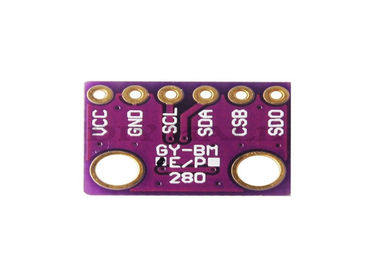

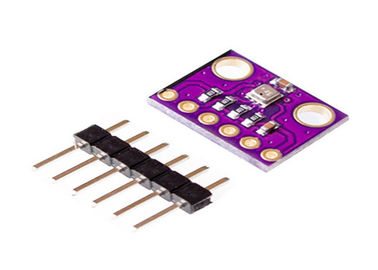

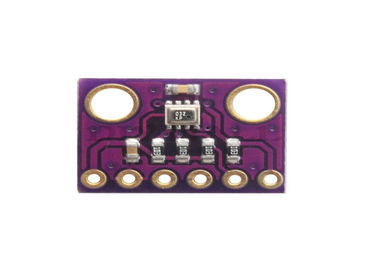

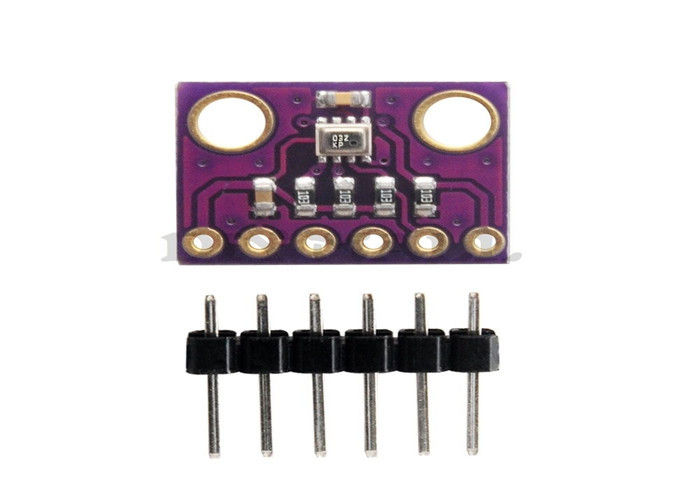

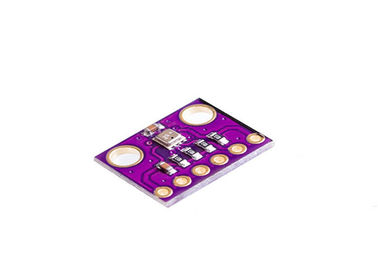

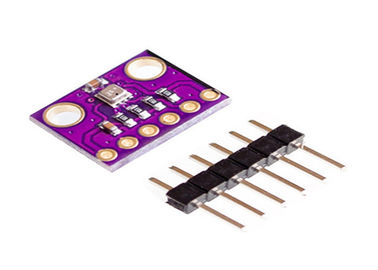

High Precision Atmospheric Pressure Sensor Module GY-BME280-3.3
Description:
*ME-BME280 is a Breakout Board with a Bosch Sensortec ME280 temperature, humidity & pressure sensor.
*Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
*The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Specification:
| Supply voltage VDD main supply voltage range | 1.71 V to 3.6 V |
| VDDIO interface voltage range | 1.2 V to 3.6 V |
| Operating temperature range | -40~+85 °C |
| Current consumption | 1.8 uA @ 1 Hz humidity and temperature; 2.8 uA @ 1 Hz pressure and temperature; 3.6 uA @ 1 Hz humidity, pressure and temperature; 0.1 uA in sleep mode. |
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)
Circuit Diagram:
