Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | OEM |
| Certification: | RoHS |
| Model Number: | OKY3375-9 |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Price: | USD1.29-1.47/piece |
| Packaging Details: | Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS) |
| Delivery Time: | 1-3 workdays after payment |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Day |
| Color: | Bule | Working Voltage: | 1.9-3.6V |
|---|---|---|---|
| Suspen Mode:: | 14 UA | Delivery Time: | 1-3 Days |
| Working Current: | 90ua | User: | Students,Engineers Etc. |
| Warranty: | 2 Years | Factory: | Yes |
| Highlight: | electronic components kit,industrial electronic components |
||

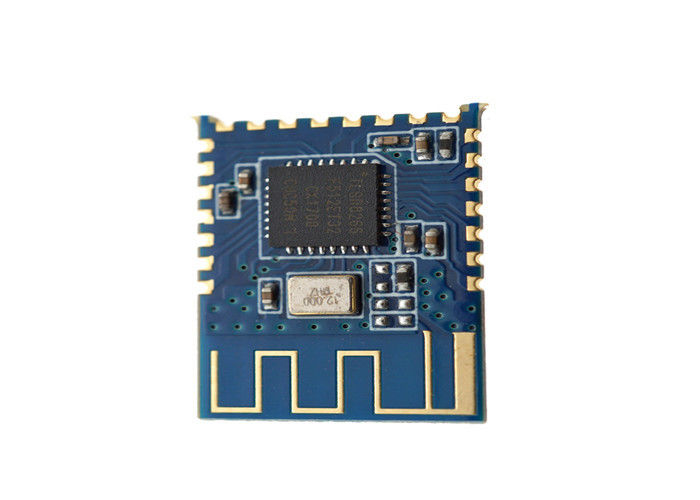

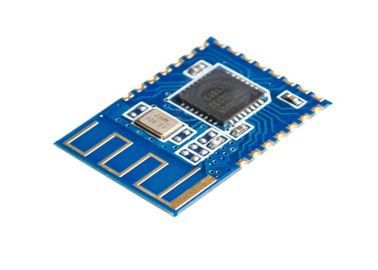

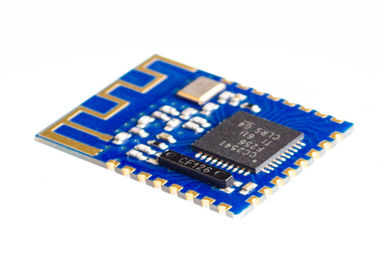

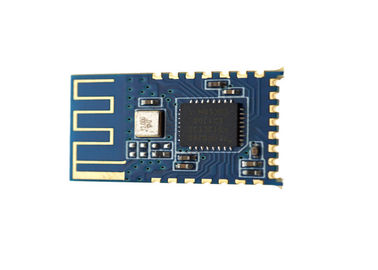

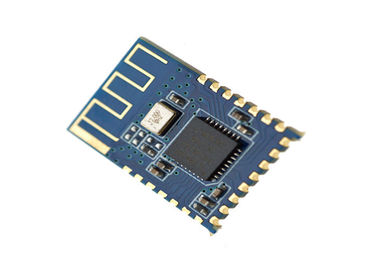

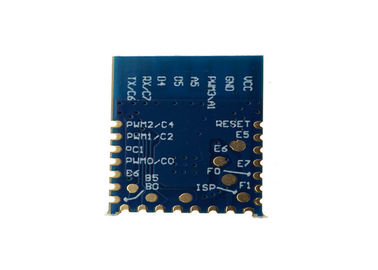

JDY-10 BLE Bluetooth 4.0 Uart Transceiver Module CC2541 Central Switching Wireless Module
Product Description:
prefix = "o" ns = "urn: schemas-microsoft-com: office: office"
JDY-10 Transparent module is based on the Bluetooth 4.0 protocol standard, the working frequency band is 2.4GHZ, the modulation mode is GFSK, the maximum transmission power is 8db, the maximum transmission distance is 80m, with low power consumption, small size, strong signal, data transmission Stability and other characteristics.
Specification:
| Model | JDY-10 Bluetooth 4.0 slave module |
| Kernel | M0 |
| Communication interface | serial port |
| Working voltage | 1.9-3.6V |
| Communication distance | 100 meters (some modules launch power, communication distance than the previous module is much more |
| Working current | 90ua |
| Suspen mode | 14 uA |
| The module is | Bluetooth 4.0 slave |
Product features:1: support Android, IOS phone data through
2: support low power consumption (standby current can reach several uA)
3: Supports GPIO and UART peripheral interface
4: support AT command operation
5: FCC / CE and other standards can be certified
Application Range
1: Bluetooth LED lighting
Dimension Photo:
Circuit Diagram:
