Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer
 |
| Place of Origin: | Guangdong China (Mainland) |
| Brand Name: | Oky Newstar |
| Certification: | RoHS |
| Model Number: | OKY4087 |
| Minimum Order Quantity: | 10pieces/pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 7.1cm*2cm |
| Delivery Time: | 3-5 workdays after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces |
| Weight: | 22g | Model: | MAX7219 |
|---|---|---|---|
| Voltage: | 3.3v-5v | Size: | 7.1cm*2cm |
| Condition: | New | Color: | Blue |
| Highlight: | electronic spare parts,industrial electronic components |
||
Description:
1.MAX7219 is an integrated serial input / output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display, you can also connect a bar graph display or 64 separate LED.
2.A convenient four-wire serial interface can connect all common microprocessor. Each data can be addressed in the update without rewriting all displays.
3.The entire device includes a 150μA low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data, there is an all LED light detection mode.
4.Only need three IO ports can drive eight digital tube, the module compatible of 5v/3.3v microcontroller.
5.PCV board four corners of the fixed copper stud, which can effectively prevent short circuit accidents happen.
6.10MHz Serial Interface.
7.Individual LED Segment Control.
8.Decode/No-Decode Digit Selection.
9.24-Pin DIP and SO Packages.
Package Included:

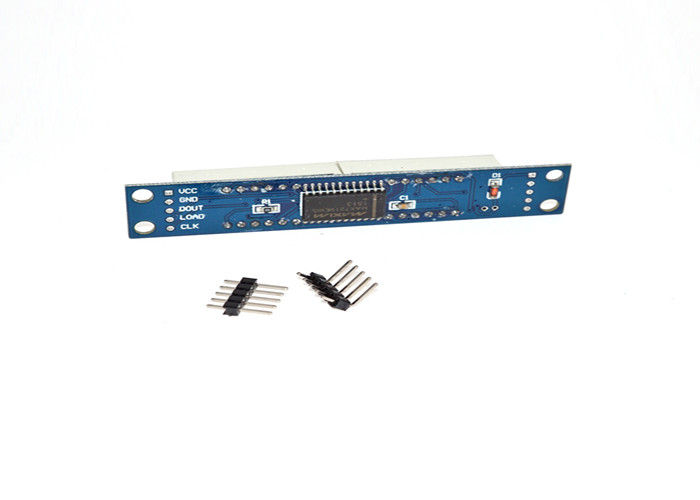

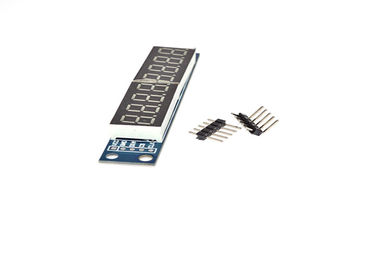

1pcs*MX7219 8 digital tube driver module for arduino

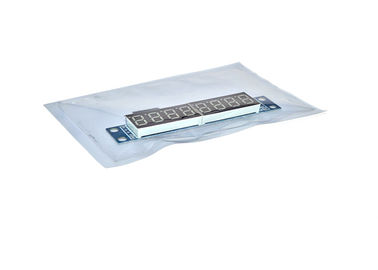

Different anti-static package at optional:
1. Full or partial package according as your requirement.
2. Retailing Box package design according to your requirement ( Order > 2000PCS )
Competitive Advantage:
1. Convenient & Friendly Customer Service
2. Low Prices Direct From Factory Suppliers
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty
6. Safe Shipping Way and Payment
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once and then we make the judgement for the issue.
3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.You can return back to us, we will refund your full payment.
4.what is the warranty?
1-3 months to replace new items for free, 1-2 years repairing free according to different products.
5.Do you accept OEM design?
Yes,we do.We can design according to your requirement.
6.Are you a manufacturer?
Yes,we are.
