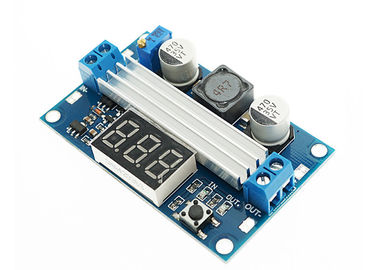

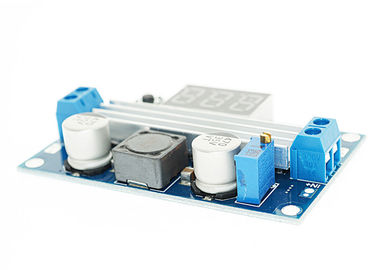

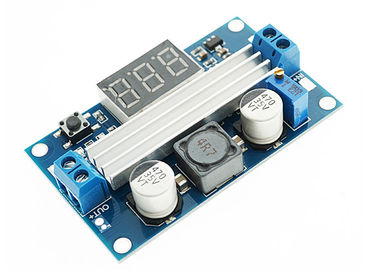

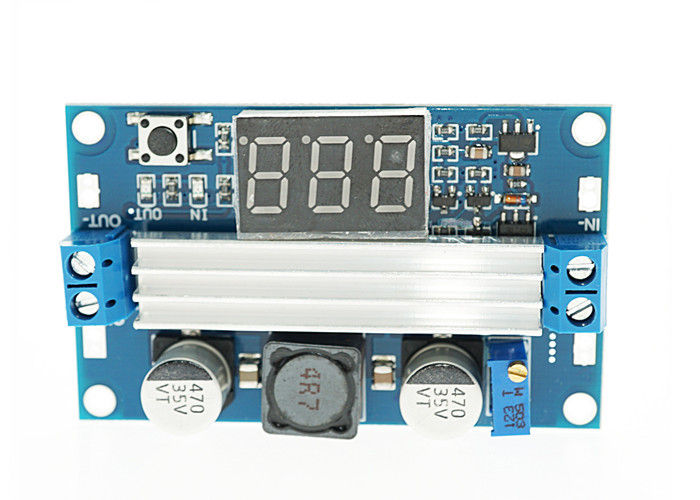

100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter

100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter

  • 100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter
  • 100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter
  • 100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter
  • 100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter
100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: Oky Newstar
Certification: RoHS
Model Number: OKY3500-1
Payment & Shipping Terms:
Minimum Order Quantity: 10Piece/Pieces
Price: $3.51- - $3.99/Pieces
Packaging Details: 32*14mm; Higth:8mm
Delivery Time: 3-5 workdays after payment
Payment Terms: L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Dimensions: 67 * 43 * 12mm Input Current: 9A (max)
Weight: 15g MOQ: 10pcs
Output Current: 6A (max) Conversion Efficiency: 96.4% (max)
High Light:

arduino sensors kit

,

arduino temperature sensor

LTC1871 100W DC-DC Step up Power Supply Booster Module Heat Sink + LED Voltmeter







Description:



A compact but high powered DC-DC step-up (boost) power supply converter module. It features a wide operating supply range with a power supply input voltage between 3 to 35V and will step-up this input voltage from 3.5V to 35V. The module also includes an integrated voltage meter that can measure both the input and output voltages. A voltage selection button allows for easy switching between the two. Together with its high multi-turn precision potentiometer this means any desired output voltage within its supply range can be sent without the need of an external test meter. Additionally LED indicators show power and input or output metering.





1. Input voltage: 3 ~ 35V DC (Note: voltmeter does not indicate a value under 4 volts.)
2. Input power: 9A (max)
3. Output voltage: 3.5 ~ 35V DC (this board is a step-up in input voltage, output voltage to> =)
4. Output power: 6A (max)
5. Output power: 75W, (when the input voltage and the output voltage is greater than 20V can reach 128W)
6.Conversion efficiency: 96.7% (at its highest):
7.Output ripple (TYP): 24mV
8.On board voltmeter berijk: 4 ~ 40V, + -0.1V
9. Power protection: (limit 14A). Tip: first provide power to the converter and then connect the load.
10.NO polaritet protection (you can use a diode).
11. Dimensions = 67x43x12MM (without screw bushes)



Package Included:



1pc *Ltc1871 DC 100w 3-35v 12v to 3.5-35v Boost Step-up Module LED Voltmeter PCE



Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement( Order > 3000PCS)



100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter 0100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter 1100W DC - DC Step Up Boost Converter Module Heat Sink And LED Voltmeter 2
