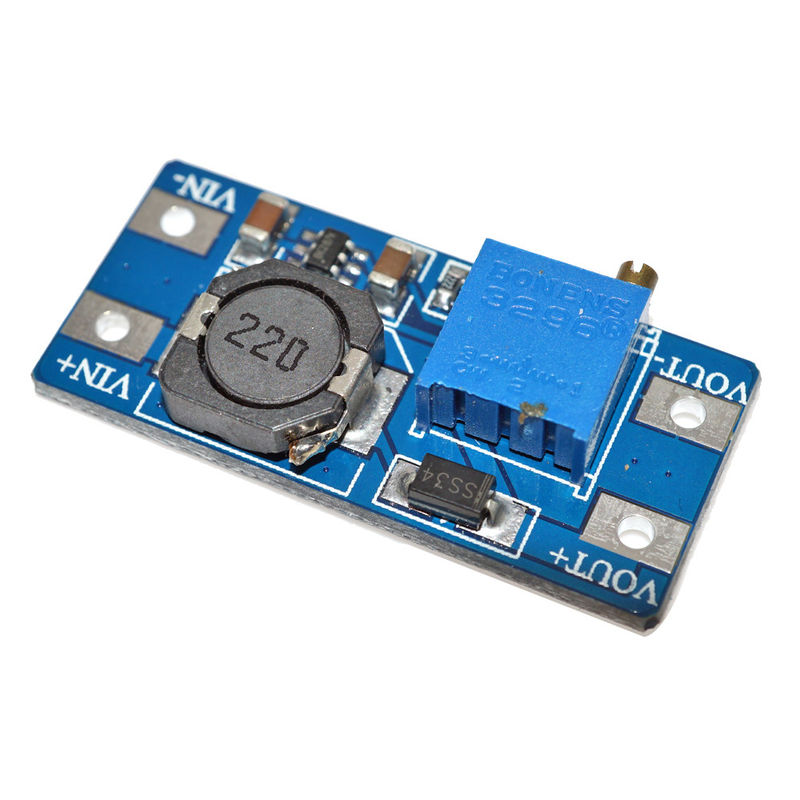

MT3608 DC-DC Step Up Converter Power Module Booster Power MAX output 28V 2A
Description:
These DC-DC Voltage Step Up Adjustable Boost MT3608 Converter's are supplied by ReefLED can be used for a variety of DIY applications including use with rc Helicopters, Quadcopters, Ardu Builds etc.
Included: 1x DC-DC Voltage Step Up Adjustable Boost MT3608 Converter.
The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height.
Internal soft-start results in small inrush current and extends battery life. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.
| Specifications | The maximum output current: 2 a The input voltage: 2 v ~ 24 v The maximum output voltage: 28 v Efficiency: ≤93% product size: 36 mm * 17 mm * 14 mm |
| Features |
Long operating life The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage |
