6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board

6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board

    • 6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board
    • 6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board
    • 6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board
    • 6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board
  • 6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board

    Product Details:

    Place of Origin: Shenzhen,guangdong,china
    Brand Name: Okynewstar
    Model Number: oky3541

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: 15cm x 10cm x 3cm
    Delivery Time: 1-3 days after payment
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability: 10000 pcs
    Contact Now
    Detailed Product Description
    The Board: 6Bit Color Supported Power Supply: +5 VTo+5.3 V.
    Operating Current: 300mA. Operating Temperature Range: -10℃ ~ +50℃
    High Light:

    arduino development kit

    ,

    arduino development board

    6Bit Board For Arduino, Full Color 8 X 8 LED RGB Matrix Screen Driver Board ATmega 328 ISP







    Quick Detail:



    6Bit color supported;

    Support hardware16MHZ PWM

    Without any additional circuitry

    Dedicated GPIO and ADC Interface

    Support hardware URAT and IIC Communication

    24 Channel constant current channel current up to each channel100mA

    8 channel constant current source drive current up to each channel500mA

    Power supply: +5 VTo+5.3 V.

    Operating Current: 300mA.

    Operating temperature range:-10℃ ~ +50℃





    Description:



    Full-color RGB Dot matrix driver board is a Arduino Dashboard module which specialized designed for RGBA full-color dot matrix, This module not only can drive the RGB Dot matrix independently but also can be used as a Arduino Control panel. It is Very convenient and practical, on-board chip is ATmega 328Chips, the board also raise above ISP Interface, you can programmer bootloader to 328 Chip free. Drawback unlike other Arduino Uno, there is no corresponding leads I / 0 Out of the mouth, but leads to a number of IIC Interface and power supply interface.





    Specifications:

    Support for multiple cascaded without hardware settings.

    Support RGB Three kinds of mixed color display and monochrome display.

    Lattice sequence using planar Cartesian coordinate system, to facilitate understanding .

    Support arduino Development board powered or external independent power supply.

    When multiple cascading is used, if the color is too dark, the supply voltage can be increased to 5.2v or so. Do not exceed 5.4V.

    Multiple cascaded, all connected to the data line1Chant board. (Origin(0,0) Where the sub-board for1No sub-board )





    Product Image

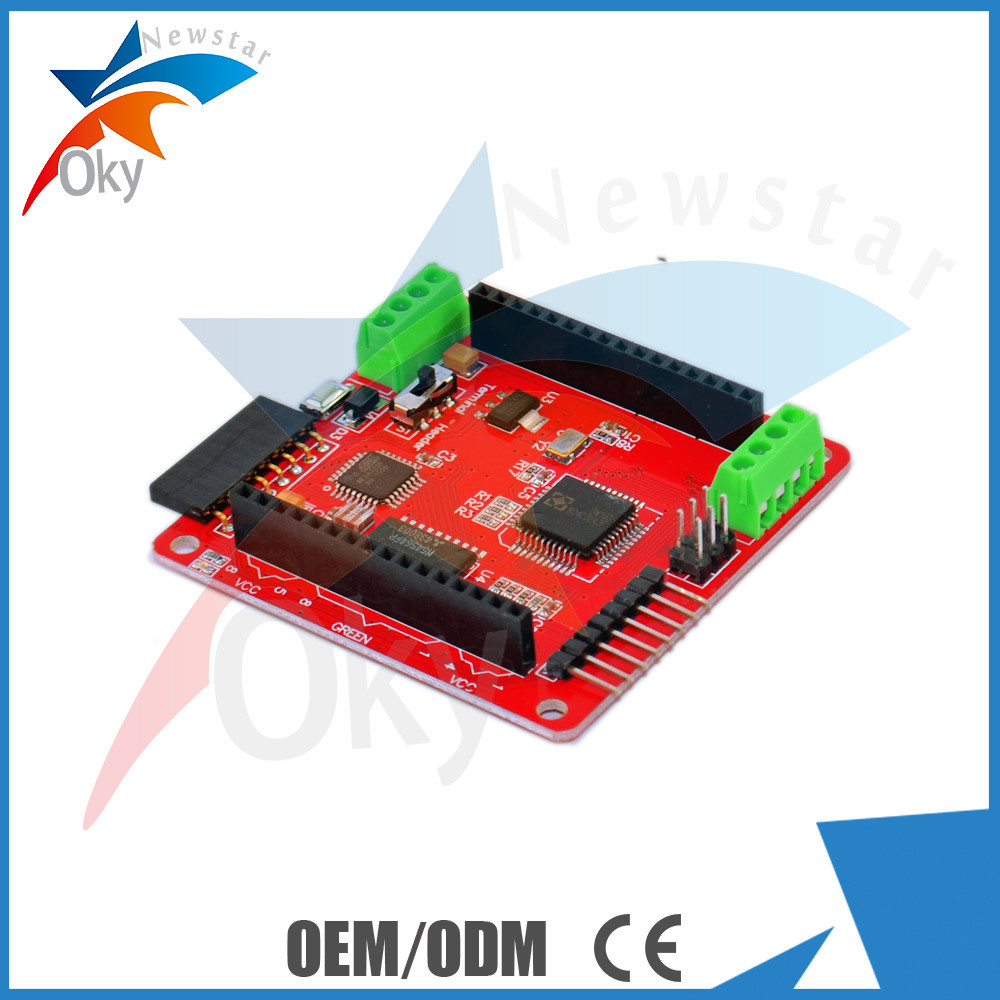

    6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board 06Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board 1







    Factory Pictures



    6Bit Board For Arduino,Full Color 8 X 8 LED RGB Matrix Screen Driver Board 2
