1.8" Serial 128X160 TFT Display Module For Arduino

1.8" Serial 128X160 TFT Display Module For Arduino

  • 1.8" Serial 128X160 TFT Display Module For Arduino
  • 1.8" Serial 128X160 TFT Display Module For Arduino
  • 1.8" Serial 128X160 TFT Display Module For Arduino
  • 1.8" Serial 128X160 TFT Display Module For Arduino
  • 1.8" Serial 128X160 TFT Display Module For Arduino
  • 1.8" Serial 128X160 TFT Display Module For Arduino
1.8" Serial 128X160 TFT Display Module For Arduino
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: OEM
Model Number: OKY4020-4
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: USD 2.6- 2.99/piece
Packaging Details: Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
Delivery Time: 1-3 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Product Name: 1.8" Serial 128X160 TFT Display Module For Arduino Customization: Yes
Size: 1.8(inch) Resolution: 128*160 (Pixel)
Working Temperature: -10℃~60℃ Storage Temperature: -20℃~70℃
Working Voltage: 5V/3.3V Module PCB Size: 38.30x62.48 (mm)
High Light:

arduino sensors kit

,

arduino temperature sensor

1.8" Serial 128X160 TFT Display Module For Arduino



TFT Display Module Details:



1. Support various MCU in-line without any wiring
2. Integrated voltage regulator IC, support 5V or 3.3V power supply
3. On-board level conversion scheme, truly compatible with 5V/3.3V IO level, supporting various microcontroller IO connections
4. Integrated SD card expansion circuit,
5. Reserve SPI FLASH font circuit to facilitate extended application



Product Features:




Display color: 16BIT RGB 65K color
Size: 1.8(inch)
Type: TFT
Driver chip: ST7735S
Resolution: 128*160 (Pixel)
Module interface: 4-wire SPI interface
Backlight: 2 White Led
Effective display area: 28.03x35.04 (mm)
Module PCB size: 38.30x62.48 (mm)
Working temperature: -10℃~60℃
Storage temperature: -20℃~70℃
Working voltage: 5V/3.3V
Power consumption: about 90mw

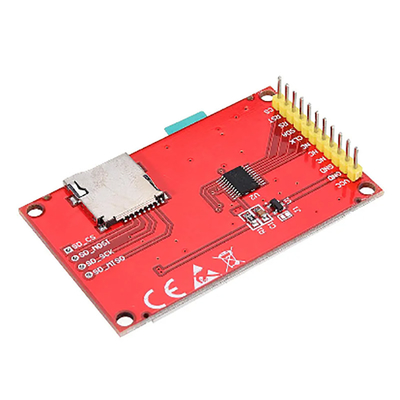

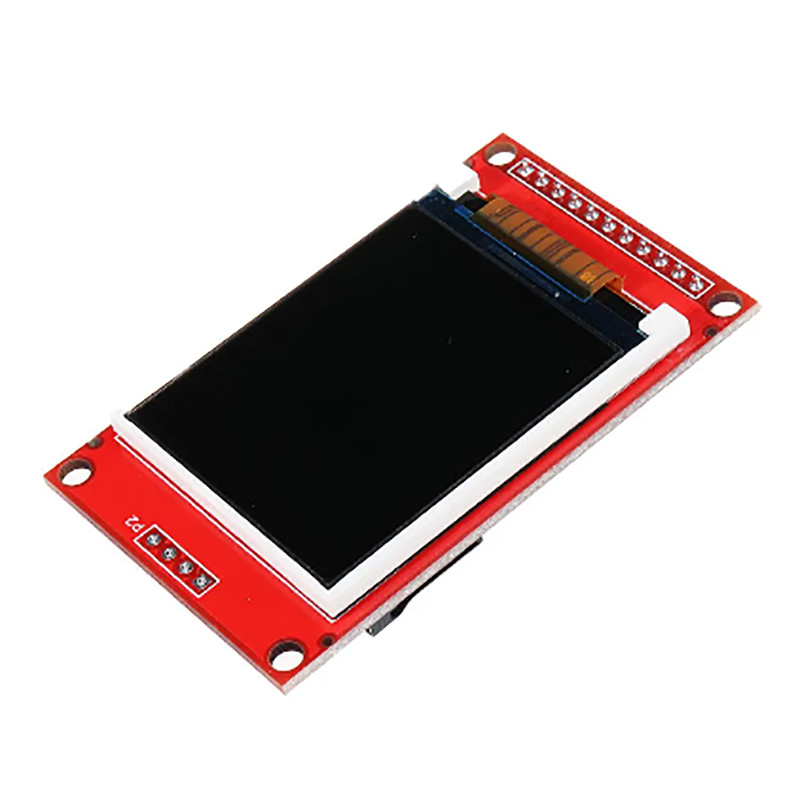

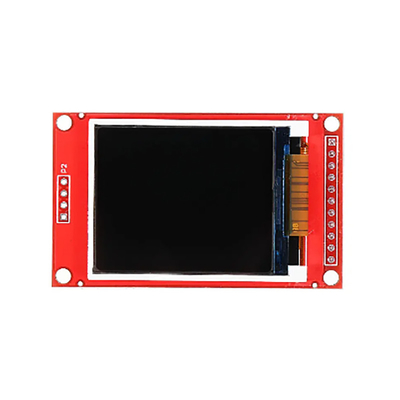

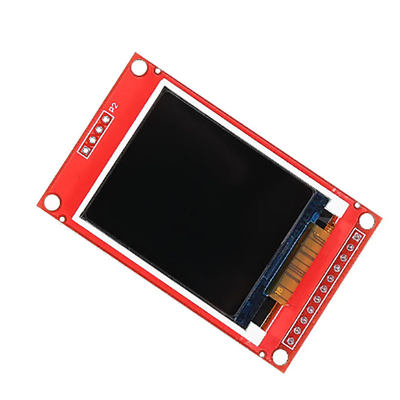

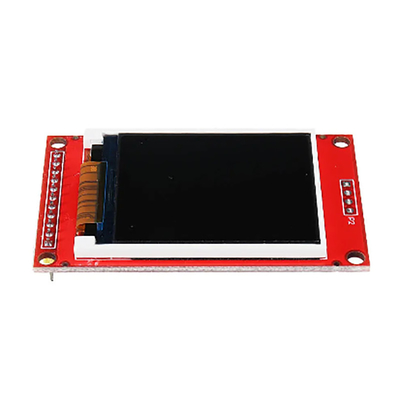

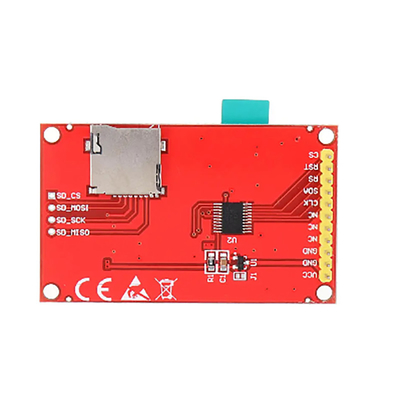

Product Pictures:

1.8" Serial 128X160 TFT Display Module For Arduino 01.8" Serial 128X160 TFT Display Module For Arduino 11.8" Serial 128X160 TFT Display Module For Arduino 2
