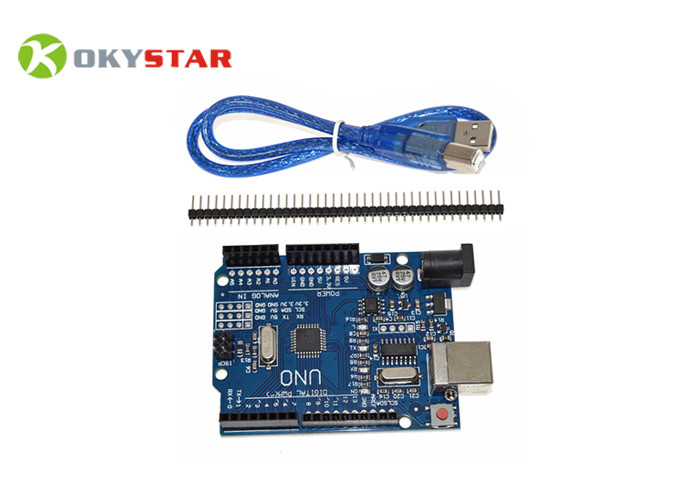

ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable

ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable

  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
  • ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable
Product Details:
Place of Origin: Guangdong China(Mainland)
Brand Name: OKYSTAR
Model Number: OKY2001
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: US $2.72 - 2.96/ Piece
Packaging Details: Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)
Delivery Time: 1-3 work days after payment
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P,
Supply Ability: 10000 pieces per day
Contact Now
Detailed Product Description
Product Name: ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable Controller: ATmega328P-AU
USB To Serial Chip: CH340G USB Port: Type B USB
Weight: 56g
High Light:

diy arduino board

,

arduino development kit

ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable


Description:

The Uno board Clone is a microcontroller board based on the ATmega328. It has 14 digital input/output
pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB
connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the
microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or
battery to get started.


Open circuit diagram of the original design, the development of software interface for free download, can also be in accordance with the requirements and their modified, download the program is simple and convenient. Can simply use sensors, all kinds of electronic components connection (such as: LED lights, buzzer, buttons, photoresistance, etc.), make all sorts of interesting work.Microprocessor controller, using high-speed development interface and the environment are very simple and easy to understand, very suitable for beginners to learn.

Specification:

Input Voltage (recommended)7-12V
Digital IO pins14 (of which 6 provide PWM output)
Analog input pins6
DC Current per I/O Pin40 mA
USB Porttype B USB
Clock Speed16 MHz
Operating voltage5V
Input Voltage (limits)6-20V
The largest output current800 mA
Pack Size12cm*12cm*8cm
Board Weight36g
Cable Weight25g


The power pins are as follows:
• VIN. The input voltage to the Arduino board when it's using an external power source (as opposed to
5 volts from the USB connection or other regulated power source). You can supply voltage through
this pin, or, if supplying voltage via the power jack, access it through this pin.
• 5V. The regulated power supply used to power the microcontroller and other components on the
board. This can come either from VIN via an on-board regulator, or be supplied by USB or another
regulated 5V supply.
• 3V3. A 3.3 volt supply generated by the on-board regulator. Maximum current draw is 50 mA.
• GND. Ground pins.


Package Include

1pc ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable


ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 0
ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 1
More Product:



ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 2UNO R3 + breadboard 400 point + 9V battery snap Starter Learning KitATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 3


HC-06 Bluetooth Wireless Module

ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 4Mega 2560 R3 ( CH340G )ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 5HC-SR501 Human body Pyroelectric Infrared sensor PIR
ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 6DC 5V Stepper Motor 28BYJ-48 + ULN2003 Driver Test ModuleATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 7Ultrasonic Sensor HC-SR04

ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 8




LCD 1602 I2C module
(Yellow Green light)
( Red board module)
ATmega328P-AU CH340G Chip UNO R3 Development Controller Board With USB Cable 920cm Male TO Female 40Pin Solderless Jumper Breadboard Wires




FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.

3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
