Starter Kits,Controller Board, Sensor Modules Factory
DIY Educational programmable Robot Projects manufacturer

|
| Place of Origin: | China |
| Brand Name: | OEM / ODM |
| Model Number: | OKY3081 |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | USD 1.46- USD 1.62 / Pieces |
| Delivery Time: | 6-8 Work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per day |
| Product Name: | LM75A Temperature Sensor I2C Interface Development Board Module For Arduino | Temperature Accuracy: | ±2℃(-25℃~100℃) |
|---|---|---|---|
| Temperature Range: | -55℃～+125℃ | Power Supply Range: | 2.8V～5.5V |
| Weight: | 65g | MOQ: | 5pcs |
| Application: | For Stem Education | ||
| High Light: | I2C Interface Development Board For Arduino,LM75A Temperature Sensor Development Board,LM75A Temperature Sensor Development Module |
||

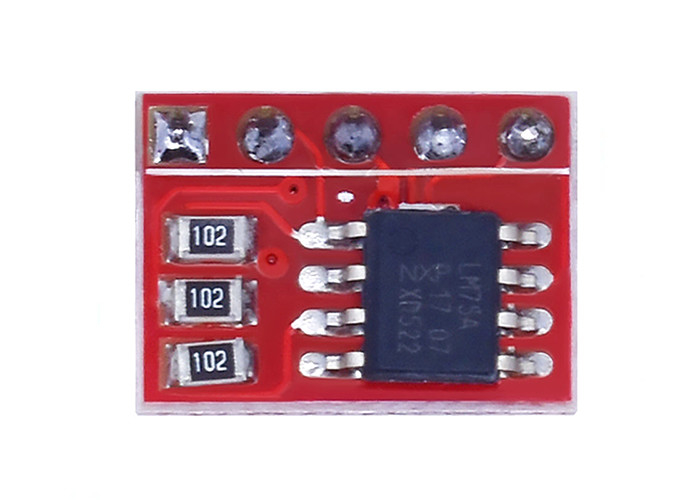

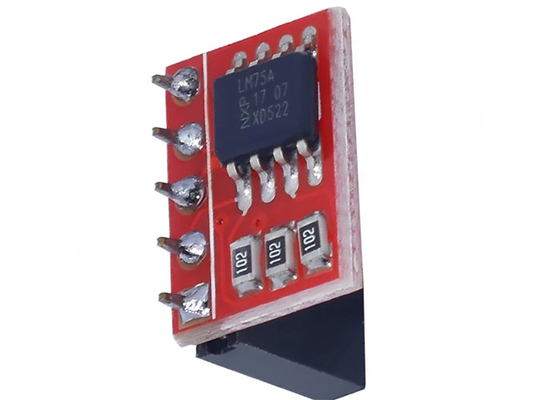

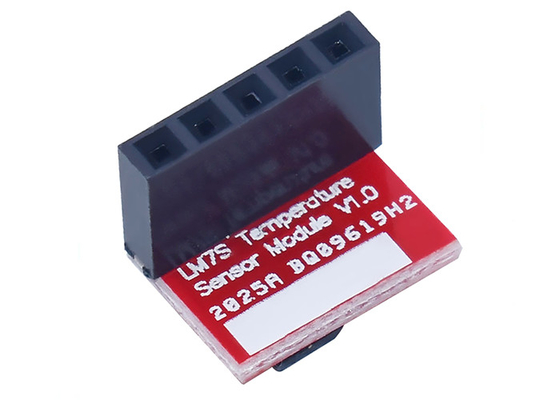

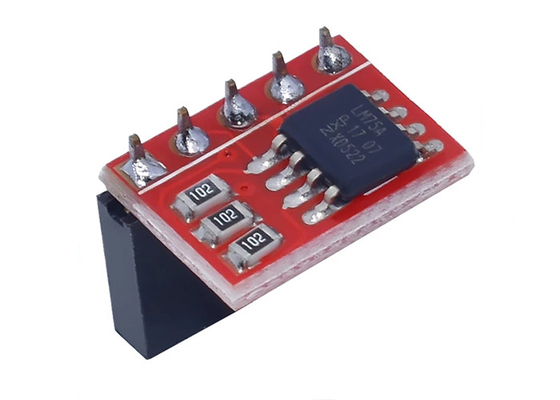

LM75A Temperature Sensor I2C Interface Development Board Module for Arduino
Description:
1. LM75A Temperature Sensor I2C Interface Development Board Module
2. I2C bus interface, device address 7-bit slave address 1001xxx
3. 8 devices can be expanded on the same bus
4. 11-bit ADC provides temperature resolution of 0.125℃
Specification:
|
ESD protection |
a) Under the JESD22A114 standard, it can pass the 2000V HBM mode; b) Under the JESD22A115 standard, 200V MM mode can be passed; c) Under the JESD22-C101 standard, 1000V CDM mode can be passed; d) Latch-up test done under JEDEC standard (JESD78) can reach 100mA; e) Small 8-pin package: SO8, TSSOP8 and ultra-small package XSON8U |
|
Temperature accuracy |
a) ±2℃(-25℃~100℃); b) ±3℃(-55℃~125℃); c) Programmable temperature threshold and hysteresis set point; d) In order to reduce power consumption, the current consumed in shutdown mode is only 1.0μA; e) The device can be used as an independent temperature controller when it is powered on |
|
Temperature range |
-55℃～+125℃ |
|
Power supply range |
2.8V～5.5V |
|
Application |
For stem education |
|
Color |
Red |
|
MOQ |
5pcs |
| Weight | 65g |
