XL6009 Step Up Power Module With LED Voltmeter

XL6009 Step Up Power Module With LED Voltmeter

XL6009 Step Up Power Module With LED Voltmeter
XL6009 Step Up Power Module With LED Voltmeter
XL6009 Step Up Power Module With LED Voltmeter
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: OEM
Model Number: OKY3498-4
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece/Pieces
Price: USD1.98-2.18/PC
Packaging Details: Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
Delivery Time: 1-2 workdays after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Place Of Origin: Guangdong, China Weight: 58g
Chip: Xl6009 Model: Step-up Power Supply Module
Type: Power Supply Module Application: DIY Experiment
Warranty: 12 Months
High Light:

XL6009 Step Up Power Module

,

4A Step Up Power Module

xl6009 step-up power module Power Supply Module with LED Voltmeter





Description

Replace LM2577, function is better
Input voltage:4.3V-32V
Output voltage: 5V-52V
Incoming current:4A(maximum)
Transfer efficiency:94%(The highest)Normal efficiency for85%
Switching frequency:400KHz
Output ripple:50mV
Load regulation:±0.5%
Voltage regulation:±0.5%
operating temperature:-40℃~+85℃
Size:6.98*3.80CM



Product Features



Product Weight 58g
Application  xl6009 step-up power module
Type  Power Supply Module
Place of Origin Guangdong, China
warranty 1 year







Product Picture

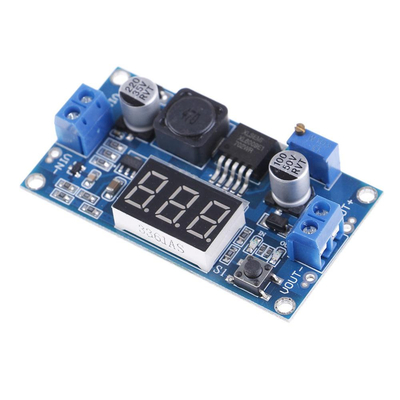

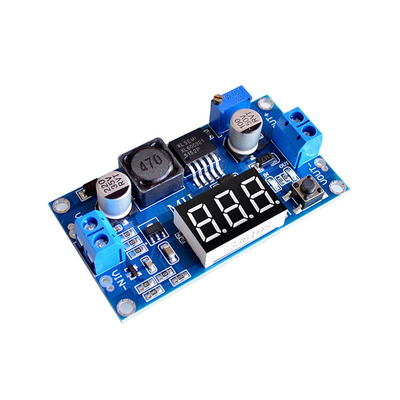

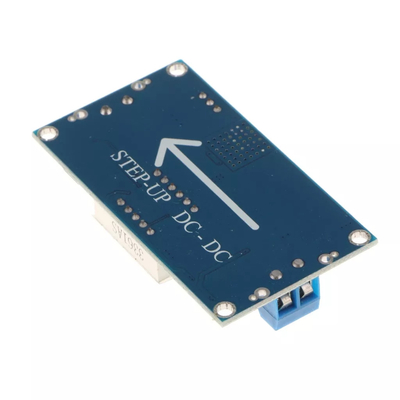

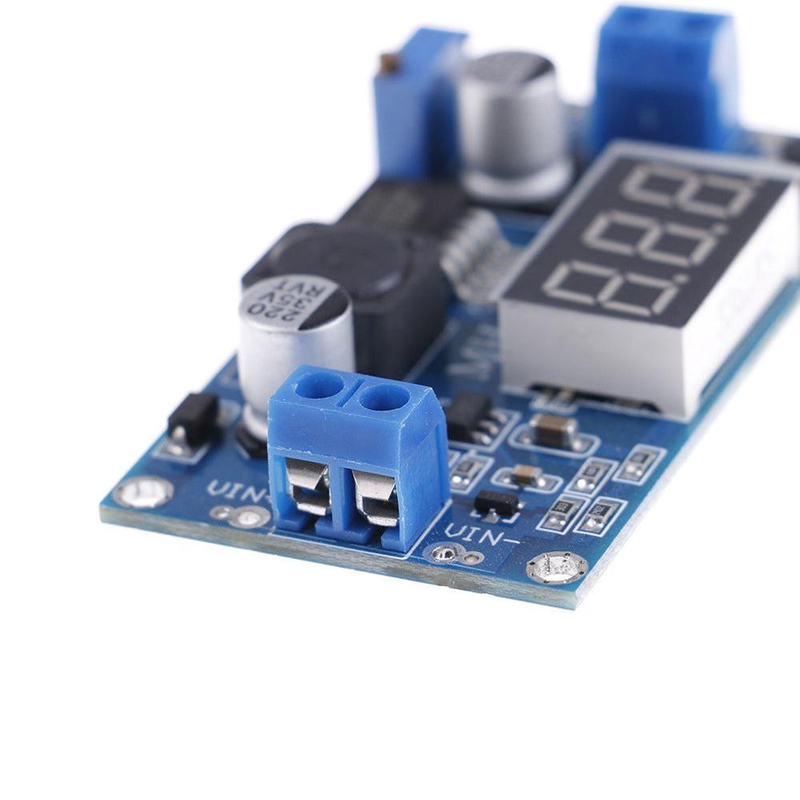

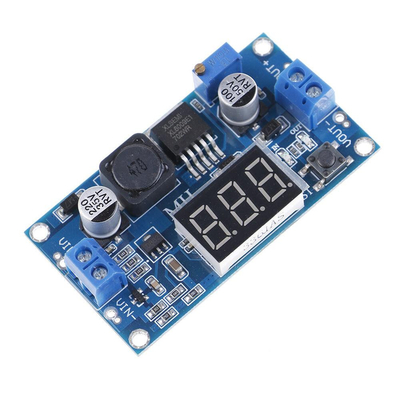

XL6009 Step Up Power Module With LED Voltmeter 0XL6009 Step Up Power Module With LED Voltmeter 1XL6009 Step Up Power Module With LED Voltmeter 2
