2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino

2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino

    • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino
    • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino
    • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino
    • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino
    • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino
  • 2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino

    Product Details:

    Place of Origin: Guangdong China (Mainland)
    Brand Name: OEM
    Model Number: OKY4030

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Piece/Pieces
    Price: USD 4.30-4.94/piece
    Packaging Details: Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS)
    Delivery Time: 1-3 workdays after payment
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
    Supply Ability: 1000 Piece/Pieces per Day
    Contact Now
    Detailed Product Description
    Resolution: 320*240 (Pixel) Screen Size: 2.2(inch)
    MOQ: 10PCS Driver Chip: ILI9341
    Module PCB Backplane Size: 40.10x67.20 (mm) Working Temperature: -20℃~70℃
    Storage Temperature: -30℃~80℃ VCC Power Supply Voltage: 3.3V~5V
    Power Consumption: About 90mA Logic IO Port Voltage: 3.3V (TTL)
    High Light:

    arduino temperature sensor

    ,

    shields for arduino

    2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino

    Product Details:

    • 2.2-inch color screen,support 65K color display,display rich colors

    • 320X240 resolution, clear display

    • Using the SPI serial bus, it only takes a few IOs to illuminate the display

    • Easy to expand the experiment with SD card slot

    • Provide a rich sample program

    • Military-grade process standards, long-term stable work

    • Provide underlying driver technical support

    •

    Product Features:



    Size: 2.2(inch)
    Type: TFT
    Driver chip: ILI9341
    Resolution: 320*240 (Pixel)
    Module interface: 4-wire SPI interface
    Effective display area (AA area): 33.84x45.12(mm)

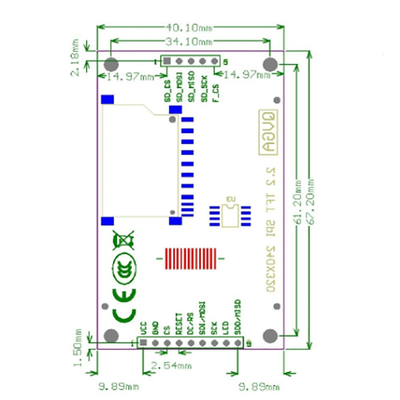

    Module PCB backplane size: 40.10x67.20 (mm)
    Working temperature: -20℃~70℃
    Storage temperature: -30℃~80℃
    VCC power supply voltage: 3.3V~5V
    Logic IO port voltage: 3.3V (TTL)
    Power consumption: about 90mA



    Product Pictures:

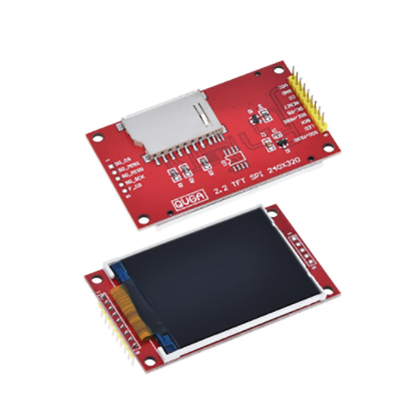

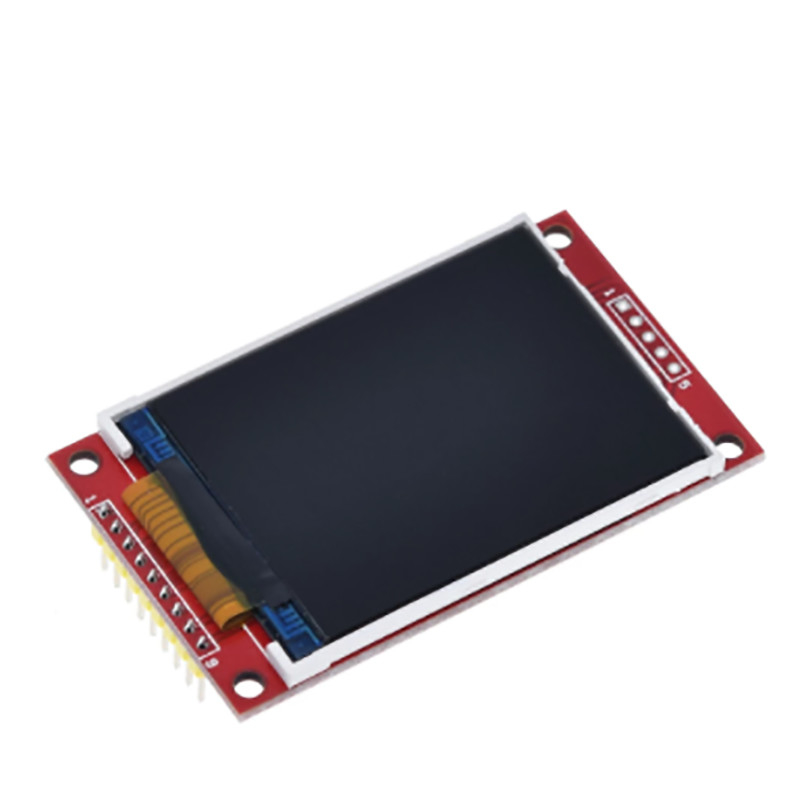

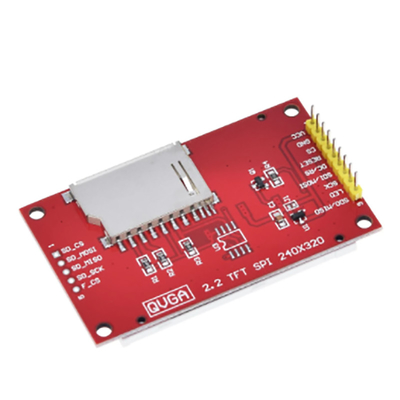

    2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino 0

    2.2" SPI Serial 240X320 TFT Display Module Compatible with 5110 4IO For Arduino 1













    About our company:



    2005, Established in Shenzhen, Guangdong, China, engaged in providing all kinds of diode, audino, integrated circuits, and electronic components.

    2006-2008, Invested in Single Chip Microcomputer plant, specialized in manufacturing all kinds of sensor modules and power supply modules.

    2009-2010, Started to manufacture Arduno-related modules, sensor modules, single development boards, etc.

    2011-2012, Mainly provided various kinds of Arduno-related boards and shields, such as UNO R3, Mega, DUE, W5100 etc. At the same time, invested in the factory of 3D printer spare parts.

    2013-2014, Took Arduno supplies as leading business,Cooperating with DIY factory, providing Ardu-related Robot products such as servo, control board cables and so on.

    2015, Striving to develop overseas business, lower, accepting small batch orders. Investing in 3D printer factory and expanding product offerings.





    FAQ:



    1. What is the terms of payment?


    L/C,D/A,D/P,T/T,Western Union,MoneyGram

    2. What is the delivery time?


    Normally, 1-5 workdays after payment;
    Special requirement orders, delivery time is negotiable.

    3.If the products can't work after receiving it,what should I do?



    We will replace new items for you at once, and respect your final decision for wrong goods.

    4.If the products don't meet my demand after I received it,can I return it?



    Yes,no problem.You can return back to us, we will refund your full payment.

    5.what is the warranty?



    1-2 years warranty according to different products.
    1-3 months to replace new items for free.
    All products are tested strictly for 2-3 times before leaving factory. we have earned very good reputation in quality,Certified by the ISO9001.
